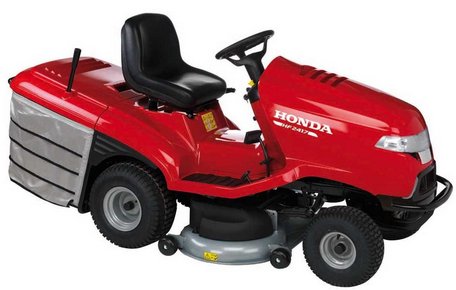

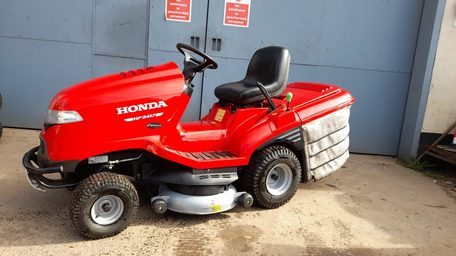

Honda HF2417

Production: 2004 - 2021
Type: Lawn Tractors

Contents:

Production

ManufacturerHonda
TypeLawn tractor

Variants

HF2417HTelectric dump

Mechanical

Chassis4x2 2WD
Steeringmanual
CabOpen operator station.

Power Take-off (PTO)

Mid PTOindependent

Electrical

Groundnegative
Battery volts12
Battery AH24

Engine Detail

Honda GCV530
gasoline
2-cylinder
air-cooled vertical-shaft V-twin
Displacement529 cc 32.3 ci
Bore/Stroke3.03x2.24 inches 77 x 57 mm
Power17 hp 12.7 kW
Rated RPM2800
Starterelectric
Starter volts12

Transmission

Typebelt-driven hydrostatic
Gearsinfinite forward and reverse

Dimensions

Wheelbase45.3 inches 115 cm
Length73.6 inches 186 cm
97.6 inches (with collector) 247 cm
Height (steering wheel)44.1 inches 112 cm
Height (hood)39 inches 99 cm
Weight502 lbs 227 kg
HT Weight522 lbs 236 kg
