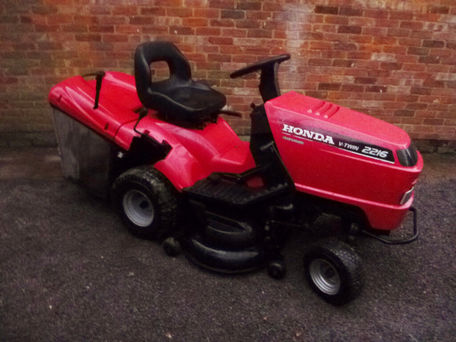

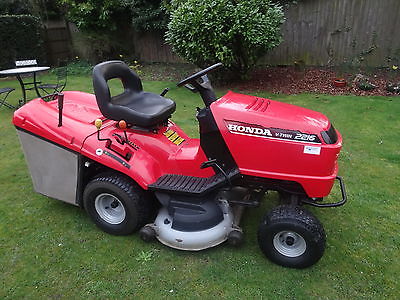

Honda HF2216

Production: 2003

Production
Manufacturer	Honda
Type	Lawn tractor

Variants
HF2216S	gear
HF2216H	hydrostatic

Mechanical
Chassis	4x2 2WD
Steering	manual
Cab	Open operator station.

Power Take-off (PTO)
Mid PTO	independent

Electrical
Ground	negative
Battery volts	12
Battery AH	20

Engine Detail
Honda GCV530
gasoline
2-cylinder
air-cooled vertical-shaft V-twin
Displacement	529 cc 32.3 ci
Bore/Stroke	3.03x2.24 inches 77 x 57 mm
Power	16 hp 11.9 kW
Rated RPM	2700
Starter	electric
Starter volts	12

Dimensions
Wheelbase	45.3 inches 115 cm
Length	70.1 inches 178 cm
90.6 inches (with collector) 230 cm
Height (steering wheel)	42.1 inches 106 cm
Height (hood)	35 inches 88 cm
Gear Weight	487 lbs 220 kg
Hydro Weight	494 lbs 224 kg
