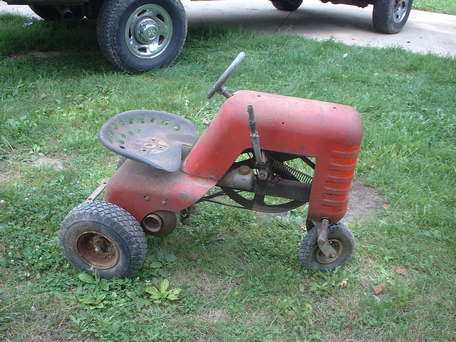

Hiller Yard Hand 100
Type: Lawn Tractors
Contents:
Production | |
| Manufacturer | Hiller |
| Type | Lawn tractor |
| Factory | Redwood City, California, USA |
| Original price | $234 (1953 ) |
Mechanical | |
| Chassis | 3x2 2WD |
| Steering | manual |
| Cab | Open operator station with steel pan seat. |
Yard Hand 100 Serial Numbers | |
| Location: | Tag on rear of tractor, below seat. |
Engine Detail | |
| Power Products 170 | |
| gasoline | |
| 1-cylinder | |
| air-cooled | |
| Two-stroke engine. | |
| Displacement | 59 cc 3.61 ci |
| Bore/Stroke | 1.75x1.50 inches 44 x 38 mm |
| Power | 1.7 hp 1.3 kW |
| Rated RPM | 3400 |
| Starter type | manual recoil |
Transmission | |
| Type | belt-drive |
| Gears | 2 forward and 0 reverse |
| Clutch | mechanical idler pulley |
| Belt drive from flywheel to rear axle. Speed changes are accomplished by moving belt from between pulley sets. | |
Dimensions | |
| Length | 45 inches 114 cm |
| Width | 27 inches 68 cm |
| Height | 36 inches 91 cm |
| Weight | 131 lbs 59 kg |
