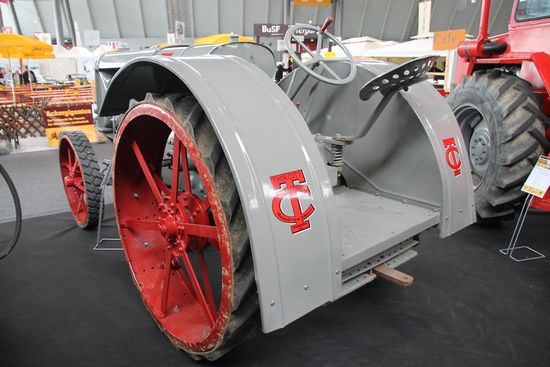

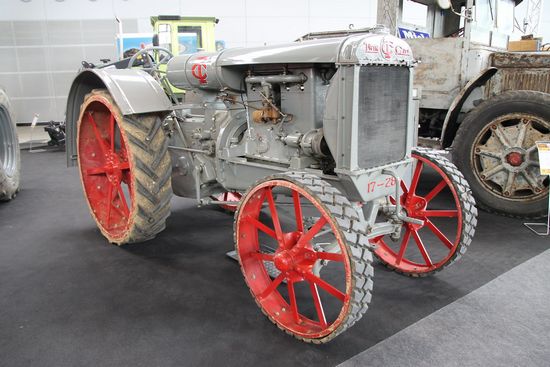

Twin City 17-28
Type: Standard-tread Tractors
Contents:
Production | |
| Manufacturer: | Twin City |
| Type: | Standard-tread tractor |
| Factory: | Minneapolis, Minnesota, USA |
| Total built: | 15,000 |
Twin City 17-28 Power | |
| Drawbar (claimed): | 17 hp 12.7 kW |
| Belt (claimed): | 28 hp 20.9 kW |
| Plows: | 3 (14-inch) |
| Drawbar (tested): | 22.505 hp 16.8 kW |
| Belt (tested): | 30.91 hp 23.0 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| Steering: | manual |
| Cab: | Open operator station. |
| Transmission: | 2-speed gear |
17-28 Serial Numbers | |
| Location: | front-left of transmission |
| 1928: | 24029 |
| 1929: | 27687 |
| 1930: | 30104 |
| 1931: | 30282 |
| 1932: | 30299 |
| 1933: | 30310 |
| 1934: | 30334 |
| 1935: | 30763 |
| Final: | 30808 |
Engine Detail | |
| Twin-City | |
| kerosene | |
| 4-cylinder | |
| liquid-cooled vertical, valve-in-head | |
| Displacement: | 340.5 ci 5.6 L |
| Bore/Stroke: | 4.25x6.00 inches 108 x 152 mm |
| Air cleaner: | dry |
| Rated RPM: | 1000 |
| Coolant capacity: | 42 qts 39.7 L |
Transmission | |
| Type: | gear |
| Gears: | 2 forward and 1 reverse |
| Clutch: | dry disc |
Dimensions | |
| Wheelbase: | 84 inches 213 cm |
| Length: | 134 inches 340 cm |
| Orchard Length: | 139.5 inches 354 cm |
| Width: | 66 inches 167 cm |
| Orchard Width: | 57.5 inches 146 cm |
| Height: | 66 inches 167 cm |
| Orchard Height: | 59 inches 149 cm |
| Weight: | 5350 lbs 2426 kg |
| Orchard Shiping weight: | 4600 lbs 2086 kg |
| Orchard Ground clearance: | 6 inches 15 cm |
| Front tread: | 39 inches 99 cm (orchard) |
| Rear tread: | 27.25 inches 69 cm (orchard) |
