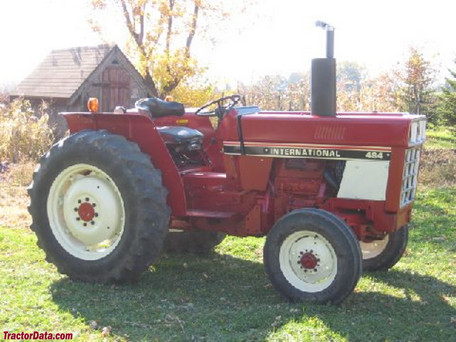

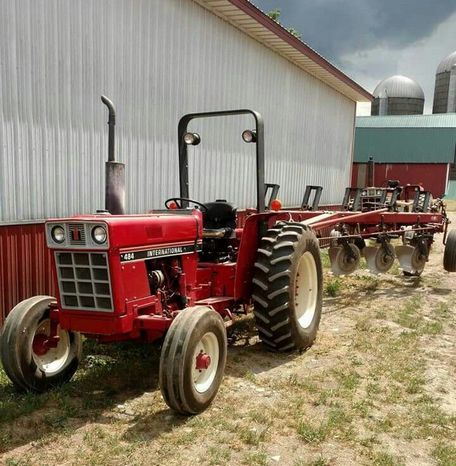

International Harvester 484
Type: Utility Tractors
Contents:
Production | |
| Manufacturer: | International Harvester |
| Type: | Utility tractor |
| Factory: | Doncaster, England |
| Original price: | $11,800 (1984 ) |
International Harvester 484 Power | |
| Engine: | 50 hp 37.3 kW |
| Drawbar (claimed): | 38 hp 28.3 kW |
| PTO (claimed): | 42.4 hp 31.6 kW |
| Drawbar (tested): | 36 hp 26.8 kW |
| PTO (tested): | 42.42 hp 31.6 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| Steering: | power |
| Brakes: | independent hydraulic wet disc |
| Cab: | Two-post fixed ROPS. Canopy optional. |
| Transmission: | 8-speed syncromesh |
Capacity | |
| Fuel: | 20 gal 75.7 L |
| Hydraulic system: | 9 gal 34.1 L |
Hydraulics | |
| Type: | open center |
| Capacity: | 9 gal 34.1 L |
| Valves: | 0 to 2 |
| Total flow: | 15.4 gpm 58.3 lpm |
Tractor hitch | |
| Rear Type: | II |
| Control: | position and draft control |
| Rear lift: | 3100 lbs 1406 kg |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Clutch: | hydraulic wet disc |
| Rear RPM: | 540 |
484 Serial Numbers | |
| 1978: | 501 |
| 1979: | 1325 |
| 1980: | 2754 |
| 1981: | 5619 |
| 1982: | unk |
| 1983: | unk |
| 1984: | 9165 |
Electrical | |
| Ground: | negative |
| Battery volts: | 12 |
Engine Detail | |
| International Harvester D-179 | |
| diesel | |
| 3-cylinder | |
| liquid-cooled | |
| Displacement: | 179 ci 2.9 L |
| Bore/Stroke: | 3.875x5.0625 inches 98 x 129 mm |
| Power: | 50 hp 37.3 kW |
| Air cleaner: | dry |
| Rated RPM: | 2200 |
| Idle RPM: | 700-2400 |
| Starter volts: | 12 |
| Oil capacity: | 6.8 qts 6.4 L |
| Coolant capacity: | 12 qts 11.4 L |
Transmission | |
| Type: | syncromesh |
| Gears: | 8 forward and 4 reverse |
| Clutch: | dry disc |
| Oil capacity: | 36 qts 34.1 L |
| Four synchronized gears in high, low, and reverse ranges. | |
Dimensions | |
| Utility Wheelbase: | 79 inches 200 cm |
| Low-profile Wheelbase: | 78.25 inches 198 cm |
| Utility Length: | 133.7 inches 339 cm |
| Low-profile Length: | 138.3 inches 351 cm |
| Utility Width: | 70.4 inches 178 cm |
| Low-profile Width: | 78.5 inches 199 cm |
| Utility Height (steering wheel): | 61 inches 154 cm |
| Low-profile Height (steering wheel): | 56.5 inches 143 cm |
| Utility Shiping weight: | 5200 lbs 2358 kg |
| Low-profile Shiping weight: | 5140 lbs 2331 kg |
| Utility Ground clearance: | 15.75 inches 40 cm |
| Low-profile Ground clearance: | 10.7 inches 27 cm |
