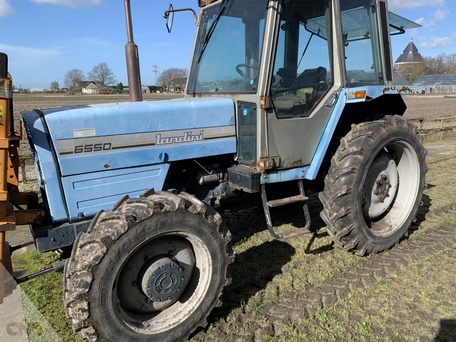

Landini 6550

Production: 1978 - 1987

Production
Manufacturer:	Landini
Type:	Utility tractor

Landini 6550 Power
Engine:	65 hp 48.5 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD
Differential lock:	mechanical rear
Steering:	power
Brakes:	wet disc
Cab:	Cab standard with heat.
Transmission:	12-speed

Hydraulics
Pump flow:	7.4 gpm 28.0 lpm

Tractor hitch
Rear Type:	II
Rear lift:	5248 lbs 2380 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540/1000 (1.375)

Electrical
Charging system:	alternator
Charging amps:	45
Battery volts:	12

Engine Detail
Perkins A4.236
diesel
4-cylinder
liquid-cooled
Displacement:	235.8 ci 3.9 L
Bore/Stroke:	3.875x5.00 inches 98 x 127 mm
Power:	65 hp 48.5 kW
Rated RPM:	2200
Torque:	188.8 lb-ft 256.0 Nm
Torque RPM:	1400
Starter:	electric
Starter volts:	12

Transmission
Gears:	12 forward and 4 reverse

Dimensions
4WD Wheelbase:	95.3 inches 242 cm
Length:	156 inches 396 cm
4WD Height (hood):	62.2 inches 157 cm
Height (cab):	100.8 inches 256 cm
2WD Weight:	6725 lbs 3050 kg
4WD Weight:	7337 lbs 3328 kg
4WD Front tread:	61 inches 154 cm
Rear tread:	59.1 to 77.2 inches 150 to 196 cm
