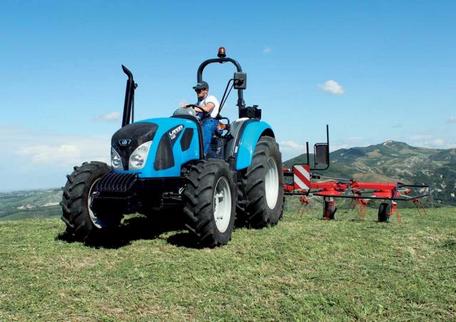

Landini 4-075

Production: 2014

Production
Manufacturer:	Landini (a part of Argo)
Type:	Utility tractor

Landini 4-075 Power
Engine:	74 hp 55.2 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Final drives:	outboard planetary
Differential lock:	mechanical rear
Steering:	power
Brakes:	hydraulic wet disc
Cab:	Two-post folding ROPS. Cab optional with air-conditioning.
Transmissions:	12-speed partially synchronized
12-speed power shuttle

Hydraulics
Type:	open center
Valves:	2 or 3
Pump flow:	12.9 gpm 48.8 lpm
Steering flow:	7.4 gpm 28.0 lpm

Tractor hitch
Rear Type:	II
Rear lift:	5952 lbs 2699 kg
7495 lbs 3399 kg *Optional

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540/540E
540/1000*Optional

Electrical
Ground:	negative
Battery volts:	12

Engine Detail
Perkins 1104D-44
diesel
4-cylinder
liquid-cooled
Displacement:	268.5 ci 4.4 L
Bore/Stroke:	4.134x5.00 inches 105 x 127 mm
Emissions:	Tier III
Power:	74 hp 55.2 kW
Rated RPM:	2200
Torque:	193 lb-ft 261.7 Nm
Torque RPM:	1400
Starter:	electric
Starter volts:	12

Dimensions
Wheelbase:	82.7 inches 210 cm
Length:	165 inches 419 cm
Width:	68.9 inches 175 cm *Minimum
Height (ROPS):	111 inches 281 cm
Height (cab):	97.2 inches 246 cm
ROPS Weight:	6380 lbs 2893 kg
Cab Weight:	7130 lbs 3234 kg
Rear axle:	Flange
