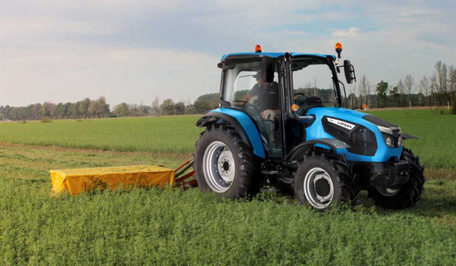

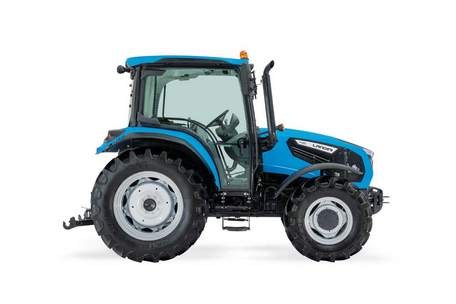

Landini 4-060

Production: 2014

Production
Manufacturer:	Landini (a part of Argo)
Type:	Utility tractor

Landini 4-060 Power
Engine:	61 hp 45.5 kW
PTO (claimed):	51 hp 38.0 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Final drives:	outboard planetary
Differential lock:	mechanical rear
Steering:	power
Brakes:	hydraulic wet disc
Cab:	Two-post folding ROPS. Cab optional with air-conditioning.
Transmissions:	12-speed partially synchronized
12-speed power shuttle

Hydraulics
Type:	open center
Valves:	2 or 3
Pump flow:	12.9 gpm 48.8 lpm
Steering flow:	7.4 gpm 28.0 lpm

Tractor hitch
Rear Type:	II
Rear lift:	5952 lbs 2699 kg
7495 lbs 3399 kg *Optional
Rear Arms:	telescopic ends and stabilizers

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540/540E
540/1000*Optional

Electrical
Ground:	negative
Battery volts:	12

Engine Detail
Deutz C4DT45
diesel
4-cylinder
liquid-cooled
Displacement:	177 ci 2.9 L
Bore/Stroke:	3.62x4.33 inches 92 x 110 mm
Emissions:	Interim Tier IV
Emission control:	cooled exhaust gas recirculation (EGR) with diesel oxidation catalyst (DOC)
Power:	61 hp 45.5 kW
Maximum Power:	64 hp 47.7 kW
Fuel system:	common rail
Rated RPM:	2200
Torque:	180 lb-ft 244.1 Nm
Torque RPM:	1600
Starter:	electric
Starter volts:	12

Dimensions
Wheelbase:	82.7 inches 210 cm
Length:	165 inches 419 cm
Width:	68.9 inches 175 cm *Minimum
Height (ROPS):	111 inches 281 cm
Height (cab):	97.2 inches 246 cm
ROPS Weight:	6380 lbs 2893 kg
Cab Weight:	7130 lbs 3234 kg
Rear axle:	Flange
