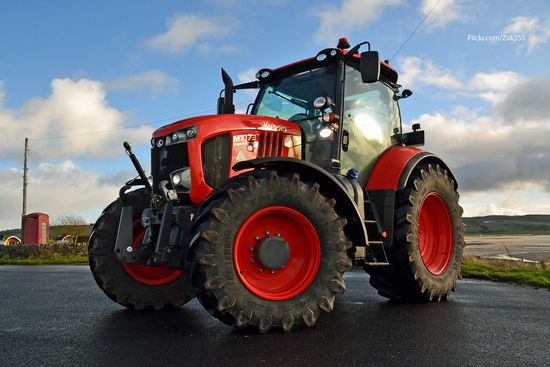

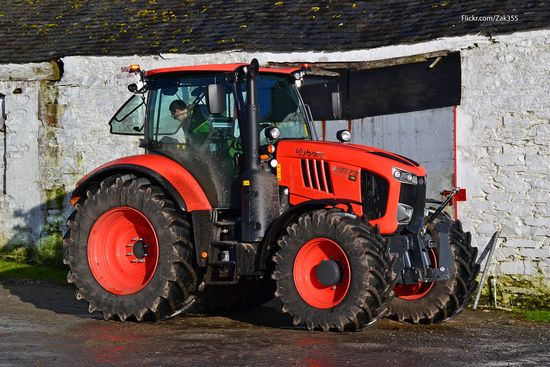

Kubota M7173

Production: 2020

Production
Manufacturer:	Kubota
Type:	Utility tractor

Kubota M7173 Power
Engine (gross):	170 hp 126.8 kW
Engine (max):	175 hp 130.5 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Cab:	Cab standard with air-conditioning.
Transmissions:	30-speed six-speed power shift
infinitely-variable transmission

Hydraulics
Type:	open center
closed-center load-sensing*Optional
Valves:	3 to 6
Pump flow:	21.1 gpm 79.9 lpm (open)
29.1 gpm 110.1 lpm (closed)

Tractor hitch
Rear Type:	III
Control:	lower-link draft sensing
Rear lift:	20723 lbs 9399 kg
Front lift:	7717 lbs 3500 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540/540E/1000/1000E
Front RPM:	1000

Electrical
Ground:	negative
Charging system:	alternator
Charging amps:	150
Battery CCA:	1000
Battery volts:	12
Battery AH:	170

Engine Detail
Kubota V6108
turbocharged intercooled diesel
4-cylinder 16-valve
liquid-cooled
Displacement:	373.7 ci 6.1 L
Bore/Stroke:	4.65x5.51 inches 118 x 140 mm
Rated Power (ECE R120):	170 hp 126.8 kW
Maximum Power (ECE R120):	175 hp 130.5 kW
Rated RPM:	1900
Torque:	524.4 lb-ft 711.1 Nm
Torque RPM:	1500
Starter:	electric
Starter volts:	12

Dimensions
Wheelbase:	107.1 inches 272 cm
Length:	187.7 inches 476 cm
Width:	98.4 inches 249 cm
Height (cab):	119.3 inches 303 cm
Shiping weight:	16204 lbs 7350 kg
Ground clearance:	17.2 inches 43 cm
