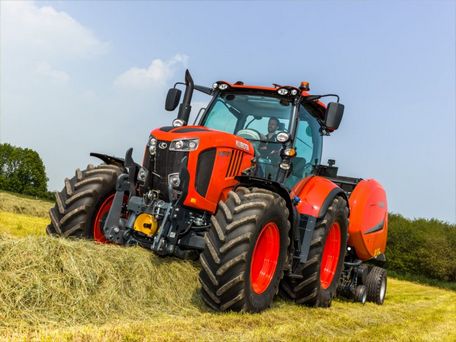

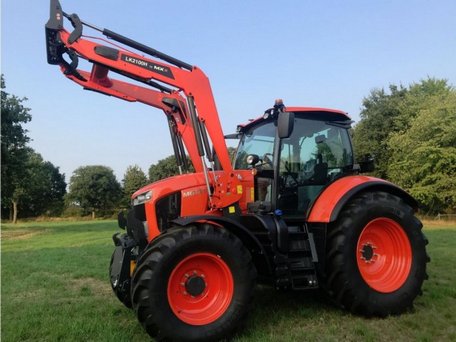

Kubota M6121

Production: 2018 - 2020

Production
Manufacturer:	Kubota
Type:	Utility tractor

Kubota M6121 Power
Engine (gross):	115 hp 85.8 kW
Engine (max):	150 hp 111.9 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Cab:	Cab standard with air-conditioning.
Transmission:	30-speed six-speed power shift

Hydraulics
Type:	load sensing
Valves:	3
Pump flow:	29.1 gpm 110.1 lpm

Tractor hitch
Rear Type:	III
Control:	lower-link draft sensing
Rear lift:	16535 lbs 7500 kg
20723 lbs 9399 kg *Optional
Front lift:	8598 lbs 3900 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540/540E/1000/1000E
Front RPM:	1000

Electrical
Ground:	negative
Charging system:	alternator
Charging amps:	150
200*Optional
Battery CCA:	1400
Battery volts:	12
Battery AH:	170

Engine Detail
Kubota V6108
turbocharged intercooled diesel
4-cylinder 16-valve
liquid-cooled
Displacement:	373.7 ci 6.1 L
Bore/Stroke:	4.65x5.51 inches 118 x 140 mm
Rated Power (ECE R120):	115 hp 85.8 kW
Maximum Power (ECE R120):	150 hp 111.9 kW
Rated RPM:	2100
Torque:	442.5 lb-ft 600.0 Nm
Torque RPM:	1500
Starter:	electric
Starter volts:	12

Transmission
Type:	six-speed power shift
Gears:	30 forward and 15 reverse
Clutch:	electro-hydraulic wet disc
Six power shift gears in five synchronized ranges with power shuttle.

Dimensions
Wheelbase:	107.1 inches 272 cm
Length:	187.8 inches 477 cm
Width:	98.4 inches 249 cm
Height (cab):	119.3 inches 303 cm
Shiping weight:	15212 lbs 6900 kg
