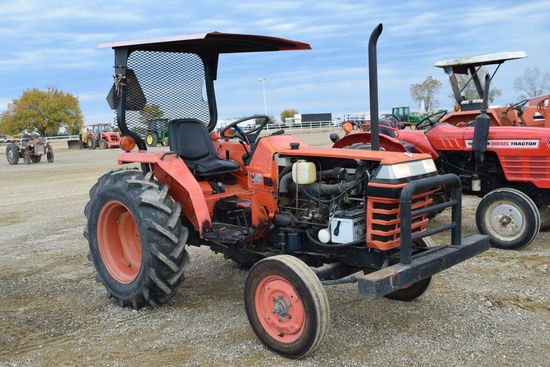

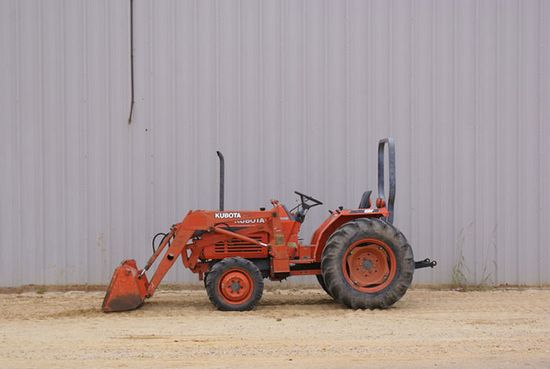

Kubota L2950

Production: 1990 - 1993

Production
Manufacturer:	Kubota
Type:	Compact Utility tractor

Kubota L2950 Power
Engine (gross):	31.7 hp 23.6 kW
PTO (claimed):	26 hp 19.4 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD (optional)
Differential lock:	mechanical rear lock
Steering:	power
Brakes:	wet disc
Cab:	Two-post ROPS. Optional canopy.
Transmissions:	8-speed mechanical shuttle
8-speed

Capacity
Fuel:	7.7 gal 29.1 L
Hydraulic system:	7.5 gal 28.4 L

Hydraulics
Type:	open center
Capacity:	7.5 gal 28.4 L
Pressure:	2490 psi 171.7 bar
Pump flow:	6.8 gpm 25.7 lpm

Tractor hitch
Rear Type:	1
Control:	position control with optional draft control
Rear lift (at ends):	2,645 lbs 1199 kg
Rear lift (at 24"/610mm):	1,985 lbs 900 kg

Power Take-off (PTO)
Rear PTO:	transmssion
live (optional)
Rear RPM:	540/1000 (1.375)
Mid PTO:	optional
Mid RPM:	1080/2000

Electrical
Ground:	negative
Battery CCA:	490
Battery volts:	12

Engine Detail
Kubota D1462-DI-AE
diesel
3-cylinder
liquid-cooled
Displacement:	89.2 ci 1.5 L
Bore/Stroke:	3.4x3.2 inches 86 x 81 mm
Power (gross):	31.7 hp 23.6 kW
Fuel system:	direct injection
Rated RPM:	2600
Torque:	70.2 lb-ft 95.2 Nm
Starter volts:	12
Coolant capacity:	4.9 qts 4.6 L

Dimensions
Wheelbase:	64.6 inches 164 cm
Length:	110 inches 279 cm
Width:	52.7 inches 133 cm
Height (steering wheel):	58.1 inches 147 cm
Height (ROPS):	83.7 inches 212 cm
Ground clearance:	13.6 inches 34 cm
Front tread:	37.8/41.7/45.7/49.6 inches 96/105/116/125 cm(2WD)
Front tread:	44.1 inches 112 cm (4WD)
Rear tread:	40.6/44.3/48/51.4/55.1 inches 103/112/121/130/139 cm
