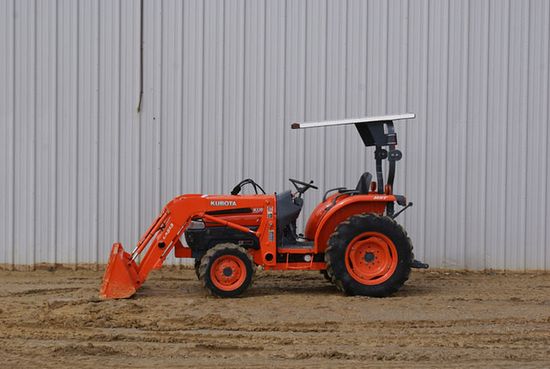

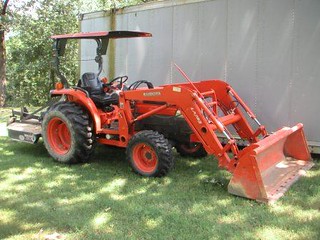

Kubota L3130
Type: Compact Utility Tractors
Contents:
Production | |
| Manufacturer: | Kubota |
| Type: | Compact Utility tractor |
Variants | |
| L3130F: | 2WD |
| L3130DT: | 4WD 8 speed |
| L3130GST: | 4WD 12 speed |
| L3130HST: | 4WD hydro |
Kubota L3130 Power | |
| Engine: | 31 hp 23.1 kW |
| Gear PTO (claimed): | 25.5 hp 19.0 kW |
| Hydro PTO (claimed): | 24 hp 17.9 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| 4x4 MFWD 4WD | |
| Steering: | power |
| Brakes: | wet disc |
| Cab: | Two-post folding ROPS. |
| Transmissions: | hydrostatic |
| 8-speed | |
| 12-speed | |
Hydraulics | |
| Valves: | 3*Optional |
| Pump flow: | 8.3 gpm 31.4 lpm |
| Total flow: | 13.2 gpm 50.0 lpm |
| Steering flow: | 4.9 gpm 18.5 lpm |
Tractor hitch | |
| Rear Type: | I |
| Rear lift (at 24"/610mm): | 2650 lbs 1202 kg |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Rear RPM: | 540 |
| Mid PTO: | optional |
| Mid RPM: | 2000 |
L3130 Serial Numbers | |
| Location: | Serial number decal on the left side of the tractor frame, above the front axle. |
Electrical | |
| Charging amps: | 40 |
| Battery volts: | 12 |
Engine Detail | |
| Kubota D1503 | |
| diesel | |
| 3-cylinder | |
| liquid-cooled | |
| Displacement: | 91.5 ci 1.5 L |
| Bore/Stroke: | 3.268x3.638 inches 83 x 92 mm |
| Power: | 31 hp 23.1 kW |
| Rated RPM: | 2700 |
| Starter volts: | 12 |
Dimensions | |
| 2WD Wheelbase: | 71.3 inches 181 cm |
| 4WD Wheelbase: | 71.1 inches 180 cm |
| 2WD Length: | 119.1 inches 302 cm |
| 4WD Length: | 114.8 inches 291 cm |
| Width: | 59.8 inches 151 cm |
| Height: | 90.7 inches 230 cm |
| 2WD Gear Weight: | 3120 lbs 1415 kg |
| 4WD Hydro Weight: | 3305 lbs 1499 kg |
| Ground clearance: | 14.2 inches 36 cm |
