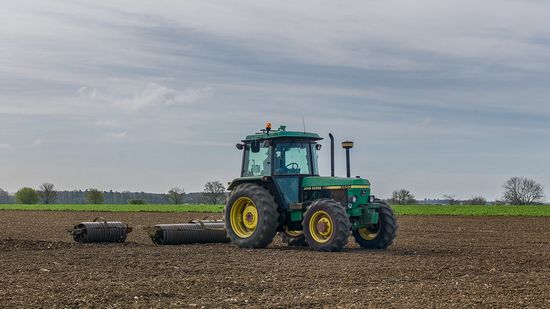

John Deere 2650
Type: Utility Tractors
Contents:
Production | |
| Manufacturer: | John Deere |
| Type: | Utility tractor |
| Factory: | Mannheim, Baden-Württemberg, Germany |
John Deere 2650 Power | |
| Engine: | 78 hp 58.2 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| 4x4 MFWD 4WD | |
| Final drives: | planetary |
| Steering: | power |
| Brakes: | wet disc |
| Cab: | ROPS. Sound-Gard and CC2 cab optional. |
| Transmission: | 16-speed two-speed power shift |
Hydraulics | |
| Type: | closed-center constant pressure |
| Pressure: | 2756 psi 190.0 bar |
| Pump flow: | 11.6 gpm 43.9 lpm |
Tractor hitch | |
| Rear Type: | II |
| Control: | position and draft control |
| Rear lift (at 24"/610mm): | 4134 lbs 1875 kg |
| Front Hitch: | II |
| Front lift: | 1742 lbs 790 kg |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Clutch: | hydraulic wet disc |
| Rear RPM: | 540/1000 |
| Engine RPM: | 540@2070 1000@2172 |
| Front PTO: | independent |
| Clutch: | hydraulic wet disc |
| Front RPM: | 1000 |
| Engine RPM: | 1000@2172 |
Electrical | |
| Ground: | negative |
| Charging amps: | 44 |
| Batteries: | 2 |
| Battery volts: | 12 |
| Battery AH: | 55 |
Engine Detail | |
| John Deere | |
| turbocharged diesel | |
| 4-cylinder | |
| liquid-cooled | |
| Displacement: | 239.2 ci 3.9 L |
| Bore/Stroke: | 4.19x4.33 inches 106 x 110 mm |
| Power: | 78 hp 58.2 kW |
| Air cleaner: | dry |
| Rated RPM: | 2300 |
| Starter volts: | 12 |
| Starter power: | 4 hp 3.0 kW |
| Coolant capacity: | 15.9 qts 15.0 L |
Transmission | |
| Transmission: | Hi-Lo |
| Type: | two-speed power shift |
| Gears: | 16 forward and 8 reverse |
| Clutch: | cerametallic disc |
Dimensions | |
| 2WD Wheelbase: | 89.2 inches 226 cm |
| 4WD Wheelbase: | 90 inches 228 cm |
| Length: | 165.1 inches 419 cm |
| Width: | 80.8 inches 205 cm |
| Height (cab): | 104.8 inches 266 cm |
| 2WD Shiping weight: | 7694 lbs 3489 kg |
| 4WD Shiping weight: | 8378 lbs 3800 kg |
| 2WD Clearance (front axle): | 25.8 inches 65 cm |
| 4WD Clearance (front axle): | 19.5 inches 49 cm |
| 2WD Front tread: | 53.5 to 79.1 inches 135 to 200 cm |
| 4WD Front tread: | 59.1 to 79.1 inches 150 to 200 cm |
| Rear tread: | 59.1 to 78.7 inches 150 to 199 cm |
