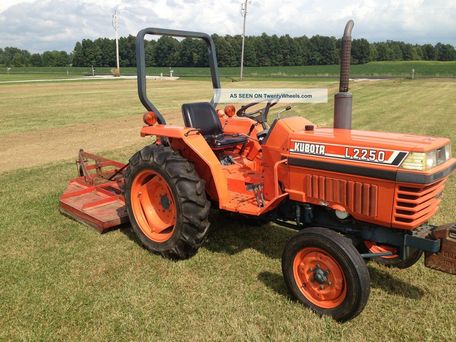

Kubota L2250

Production: 1985 - 1990

Production
Manufacturer:	Kubota
Type:	Compact Utility tractor
Factory:	Japan

Variants
L2250F:	2WD
L2250DT:	4WD

Kubota L2250 Power
Engine (gross):	26.5 hp 19.8 kW
PTO (claimed):	21 hp 15.7 kW
Drawbar (tested):	16.84 hp 12.6 kW
PTO (tested):	21.15 hp 15.8 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD
Differential lock:	rear standard
Steering:	manual
power (optional)
Brakes:	differential wet disc
Cab:	Two-post ROPS with optional canopy.
Transmissions:	8-speed mechanical shuttle
8-speed partially synchronized

Capacity
Fuel:	7.7 gal 29.1 L
Hydraulic system:	8.2 gal 31.0 L

Hydraulics
Type:	open center
Capacity:	8.2 gal 31.0 L
Pressure:	2275 psi 156.9 bar
Valves:	1 to 3
Pump flow:	6.7 gpm 25.4 lpm
Steering flow:	2.8 gpm 10.6 lpm

Tractor hitch
Rear Type:	I
Rear lift (at ends):	1875 lbs 850 kg
Rear lift (at 24"/610mm):	1435 lbs 650 kg

Power Take-off (PTO)
Rear PTO:	continuous
live*Optional
Rear RPM:	540/1000
Mid PTO:	optional
Mid RPM:	1080/2000

Electrical
Charging system:	alternator
Charging amps:	35
Battery volts:	12
Battery AH:	80

Engine Detail
Kubota D1302-DI-A
diesel
3-cylinder
liquid-cooled
Displacement:	79.3 ci 1.3 L
Bore/Stroke:	3.23x3.23 inches 82 x 82 mm
Power (gross):	26.5 hp 19.8 kW
Air cleaner:	paper element
Compression:	18:1
Rated RPM:	2600
Starter volts:	12
Oil capacity:	6 qts 5.7 L
Coolant capacity:	5.3 qts 5.0 L

Dimensions
Wheelbase:	64.6 inches 164 cm
Length:	108.3 inches 275 cm
Width:	49.4 inches 125 cm
Height:	79.9 inches 202 cm
2WD Ground clearance:	13.6 inches 34 cm
4WD] Ground clearance:	12.0 inches 30 cm
Front tread:	39.8 inches 101 cm
Rear tread:	40.0 to 44.7 inches 101 to 113 cm
