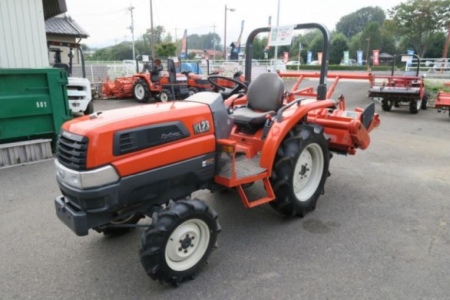

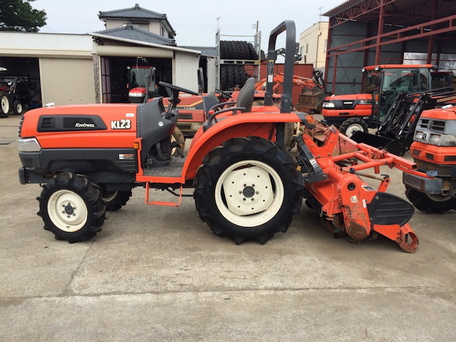

Kubota KL23

Production: 1999 - 2005

Production
Manufacturer:	Kubota
Type:	Compact Utility tractor

Kubota KL23 Power
Engine:	22.7 hp 16.9 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Steering:	power
Brakes:	mechanical wet disc
Cab:	Two-post ROPS. Cab optional.
Transmissions:	16-speed
24-speed

Tractor hitch
Rear Type:	I

Power Take-off (PTO)
Rear RPM:	540 (1.375)
Engine RPM:	542@2500 764@2500 947@2500 1263@2500 -947@2500

Electrical
Ground:	negative
Battery volts:	12

Engine Detail
Kubota D1463
diesel
3-cylinder
liquid-cooled
Displacement:	89.3 ci 1.5 L
Bore/Stroke:	3.23x3.64 inches 82 x 92 mm
Power:	22.7 hp 16.9 kW
Rated RPM:	2500
Starter:	electric
Starter volts:	12

Dimensions
ROPS Wheelbase:	61 inches 154 cm
Cab Wheelbase:	63 inches 160 cm
ROPS Length:	116.7 inches 296 cm
Cab Length:	118.7 inches 301 cm
Width:	49 inches 124 cm
Height (ROPS):	77 inches 195 cm
Height (cab):	77.6 inches 197 cm
ROPS Weight:	2840 lbs 1288 kg
Cab Weight:	2877 lbs 1305 kg
Ground clearance:	13.2 inches 33 cm
Front tread:	37.4 inches 94 cm
Rear tread:	39.8/44.5 inches 101/113 cm
