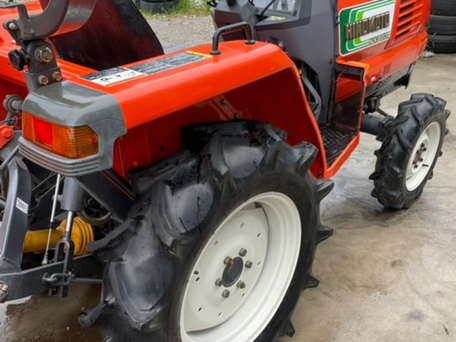

Hinomoto NX220

Production: 1993 - 1995

Production
Distributor:	Hinomoto
Manufacturer:	Kubota
Type:	Compact Utility tractor

Variants
GL220:	ROPS
GL220Q:	cab

Hinomoto NX220 Power
Engine:	21.7 hp 16.2 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Steering:	power
Brakes:	mechanical wet disc
Cab:	Two-post ROPS. Cab optional.
Transmissions:	16-speed gear
16-speed power shift

Tractor hitch
Rear Type:	I

Power Take-off (PTO)
Rear RPM:	546/772/947/1254 (1.375)

Electrical
Ground:	negative
Battery volts:	12

Engine Detail
Kubota D1463
diesel
3-cylinder
liquid-cooled
Displacement:	89.3 ci 1.5 L
Bore/Stroke:	3.23x3.64 inches 82 x 92 mm
Power:	21.7 hp 16.2 kW
Rated RPM:	2500
Starter:	electric
Starter volts:	12

Dimensions
ROPS Wheelbase:	61 inches 154 cm
Cab Wheelbase:	62.4 inches 158 cm
ROPS Length:	116.1 inches 294 cm
Cab Length:	118.3 inches 300 cm
ROPS Width:	49.2 inches 124 cm
Cab Width:	51.2 inches 130 cm
Height (ROPS):	77 inches 195 cm
Height (cab):	77.6 inches 197 cm
ROPS Weight:	2414 lbs 1094 kg
Cab Weight:	2745 lbs 1245 kg
Ground clearance:	13.2 inches 33 cm
Front tread:	37.4 inches 94 cm
Rear tread:	39.8/44.5 inches 101/113 cm
