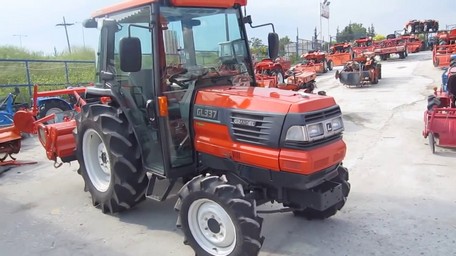

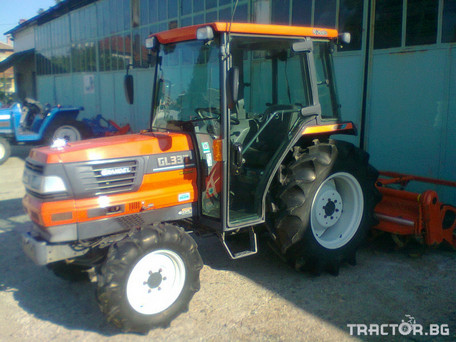

Kubota GL337

Production: 1996 - 2001

Production
Manufacturer:	Kubota
Type:	Compact Utility tractor

Kubota GL337 Power
Engine:	32.6 hp 24.3 kW
PTO (claimed):	27.9 hp 20.8 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Steering:	power
Brakes:	mechanical wet disc
Cab:	Two-post ROPS. Cab optional.
Transmission:	16-speed power shift

Hydraulics
Pump flow:	5.9 gpm 22.3 lpm

Tractor hitch
Rear Type:	I
Rear lift:	1995 lbs 904 kg

Power Take-off (PTO)
Rear RPM:	565/800/980/1298 (1.375)

Electrical
Ground:	negative
Battery volts:	12

Engine Detail
Kubota D1703
diesel
3-cylinder
liquid-cooled
Displacement:	100.5 ci 1.6 L
Bore/Stroke:	3.4x3.6 inches 86 x 91 mm
Power:	32.6 hp 24.3 kW
Rated RPM:	2700
Starter:	electric
Starter volts:	12

Transmission
Type:	power shift
Gears:	16 forward and reverse

Dimensions
Wheelbase:	68.9 inches 175 cm
Length:	125.2 inches 318 cm
Width:	57.3 inches 145 cm
Height (ROPS):	78 inches 198 cm
Height (cab):	83.1 inches 211 cm
ROPS Weight:	2822 lbs 1280 kg
Cab Weight:	3230 lbs 1465 kg
Ground clearance:	14.2 inches 36 cm
Front tread:	44.5 inches 113 cm
Rear tread:	43.7 to 62 inches 110 to 157 cm
