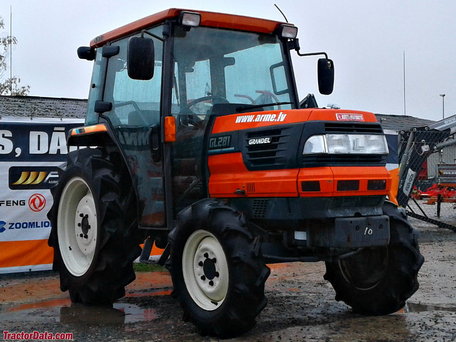

Kubota GL281

Production: 1996 - 2001

Production
Manufacturer:	Kubota
Type:	Compact Utility tractor

Kubota GL281 Power
Engine:	28.6 hp 21.3 kW
PTO (claimed):	27.6 hp 20.6 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Steering:	power
Brakes:	mechanical wet disc
Cab:	Two-post ROPS. Cab optional.
Transmissions:	16-speed gear
16-speed power shift

Hydraulics
Pump flow:	5.9 gpm 22.3 lpm

Tractor hitch
Rear Type:	I
Rear lift:	1918 lbs 870 kg

Power Take-off (PTO)
Rear RPM:	545/771/945/2152 (1.375)

Electrical
Ground:	negative
Battery volts:	12

Engine Detail
Kubota D1503
diesel
3-cylinder
liquid-cooled
Displacement:	91.5 ci 1.5 L
Bore/Stroke:	3.268x3.638 inches 83 x 92 mm
Power:	28.6 hp 21.3 kW
Rated RPM:	2700
Starter:	electric
Starter volts:	12

Dimensions
ROPS Wheelbase:	64.8 inches 164 cm
Cab Wheelbase:	66.9 inches 169 cm
ROPS Length:	120.1 inches 305 cm
Cab Length:	123.2 inches 312 cm
Width:	55.1 inches 139 cm
Height (ROPS):	78.5 inches 199 cm
Height (cab):	78 inches 198 cm
ROPS Weight:	2679 lbs 1215 kg
Cab Weight:	3086 lbs 1399 kg
Ground clearance:	14.2 inches 36 cm
Front tread:	44.5 inches 113 cm
Rear tread:	44.5 to 55.9 inches 113 to 141 cm
