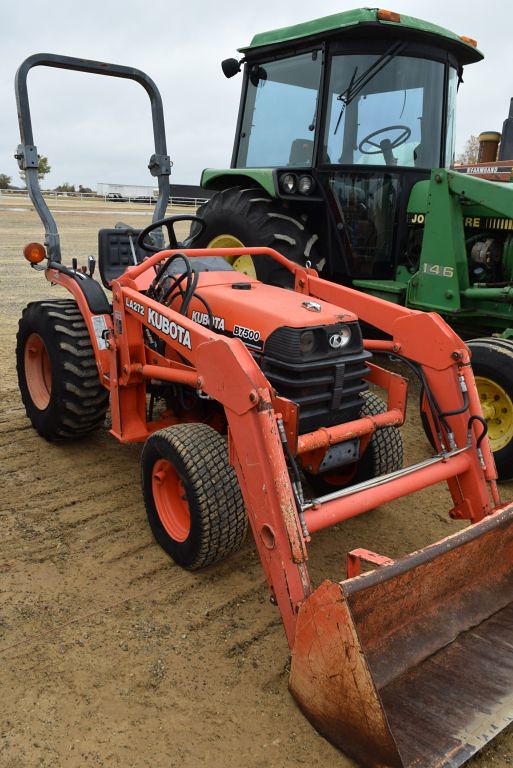

Kubota B7500

Production: 2000 - 2003

Production
Manufacturer:	Kubota
Type:	Compact Utility tractor

Variants
B7500D:	gear drive
B7500HSD:	hydrostatic

Kubota B7500 Power
Engine:	21 hp 15.7 kW
Gear PTO (claimed):	17 hp 12.7 kW
Hydro PTO (claimed):	16 hp 11.9 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Steering:	power
Brakes:	wet disc
Cab:	Two-post ROPS
Transmissions:	6-speed gear
hydrostatic

Capacity
Fuel:	5 gal 18.9 L
Front axle:	3.4 qts 3.2 L

Hydraulics
Total flow:	7 gpm 26.5 lpm

Tractor hitch
Rear Type:	I
Rear lift (at ends):	1,356 lbs 615 kg

Power Take-off (PTO)
Gear Rear PTO:	transmission
Hydro Rear PTO:	independent
Rear RPM:	540
Mid RPM:	2500

Electrical
Ground:	negative
Battery CCA:	433
Battery volts:	12

Engine Detail
Kubota D1005-E-D16
diesel
3-cylinder
liquid-cooled
Displacement:	61.1 ci 1.0 L
Bore/Stroke:	2.992x2.898 inches 76 x 74 mm
Power:	21 hp 15.7 kW
Air cleaner:	dual paper element
Rated RPM:	2600
Torque:	44 lb-ft 59.7 Nm
Starter volts:	12
Starter power:	1.9 hp 1.4 kW
Oil capacity:	3.2 qts 3.0 L
Coolant capacity:	4 qts 3.8 L

Dimensions
Wheelbase:	59 inches 149 cm
Length:	90.4 inches 229 cm
Width:	42.4 inches 107 cm
Height (steering wheel):	52.2 inches 132 cm
Height (ROPS):	76.4 inches 194 cm
Hydro Weight:	1367 lbs 620 kg
Gear Weight:	1323 lbs 600 kg
Ground clearance:	12 inches 30 cm
