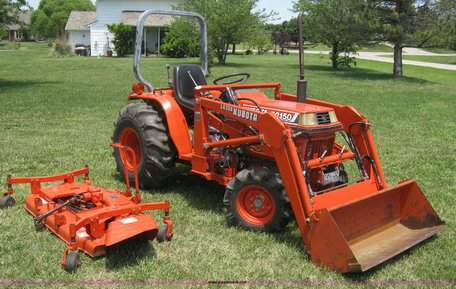

Kubota B2150

Production: 1988 - 1996

Production
Manufacturer:	Kubota
Type:	Compact Utility tractor

Variants
B2150DT:	4WD

Kubota B2150 Power
Engine (gross):	24 hp 17.9 kW
Gear PTO (claimed):	20 hp 14.9 kW
Hydro PTO (claimed):	18 hp 13.4 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD
Steering:	manual
power*Optional
Brakes:	dry disc
Cab:	Two-post ROPS.
Transmissions:	9-speed sliding gear
hydrostatic

Capacity
Fuel:	7.4 gal 28.0 L
Hydraulic system:	4.75 gal 18.0 L

Hydraulics
Type:	open center
Capacity:	4.75 gal 18.0 L
Pump flow:	7.4 gpm 28.0 lpm

Tractor hitch
Rear Type:	I
Control:	position control
Rear lift:	1014 lbs 459 kg

Power Take-off (PTO)
Rear PTO:	live
Rear RPM:	540
Mid PTO:	standard
Front PTO:	optional

Electrical
Ground:	negative
Battery volts:	12

Engine Detail
Kubota
diesel
4-cylinder
liquid-cooled
Displacement:	75.4 ci 1.2 L
Power (gross):	24 hp 17.9 kW
Rated RPM:	2600
Starter volts:	12
Oil change:	100 h
Coolant capacity:	4.1 qts 3.9 L

Dimensions
Wheelbase:	63 inches 160 cm
Length:	109.4 inches 277 cm
Width:	44.7 inches 113 cm
Height:	76.8 inches 195 cm
2WD Shiping weight:	1687 lbs 765 kg
4WD Shiping weight:	1841 lbs 835 kg
2WD Front tread:	32.7 inches 83 cm
4WD Front tread:	35.4 inches 89 cm
