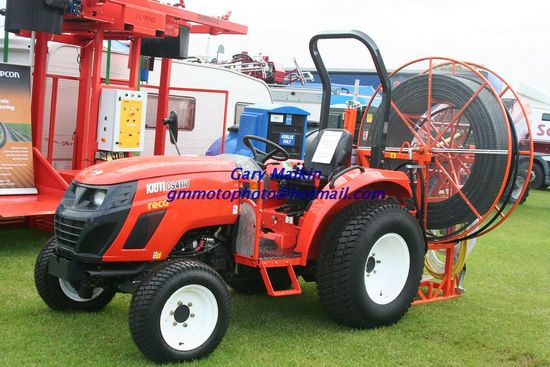

Kioti DS4110

Production: 2009 - 2016

Production
Manufacturer:	Kioti (a part of Daedong)
Type:	Compact Utility tractor
Factory:	Daegu, South Korea

Kioti DS4110 Power
Engine (gross):	41 hp 30.6 kW
PTO (claimed):	31.4 hp 23.4 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Differential lock:	rear standard
Steering:	power
Brakes:	wet disc
Cab:	Foldable ROPS. Optional canopy.
Transmission:	8-speed shuttle

Hydraulics
Type:	open center
Valves:	0 to 2
Total flow:	13.18 gpm 49.9 lpm

Tractor hitch
Rear Type:	I
Rear lift (at 24"/610mm):	2,425 lbs 1099 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540

Electrical
Ground:	negative
Battery volts:	12

Engine Detail
Daedong 4A200LWM
diesel
4-cylinder
liquid-cooled inline
Displacement:	122 ci 2.0 L
Bore/Stroke:	3.27x3.64 inches 83 x 92 mm
Emissions:	Interim Tier IV
Power (gross):	41 hp 30.6 kW
Air cleaner:	dry cartridge
Rated RPM:	2600
Torque:	95.7 lb-ft 129.8 Nm
Torque RPM:	1800
Starter:	electric
Starter volts:	12

Transmission
Type:	shuttle
Gears:	8 forward and reverse

Dimensions
Wheelbase:	72.8 inches 184 cm
Length:	123 inches 312 cm
Width:	69.5 inches 176 cm
Height (ROPS):	101.6 inches 258 cm
Weight:	3,527 lbs 1599 kg
Ground clearance:	14.4 inches 36 cm
Front tread:	54.7 inches 138 cm
Rear tread:	50.2 to 58.2 inches 127 to 147 cm
