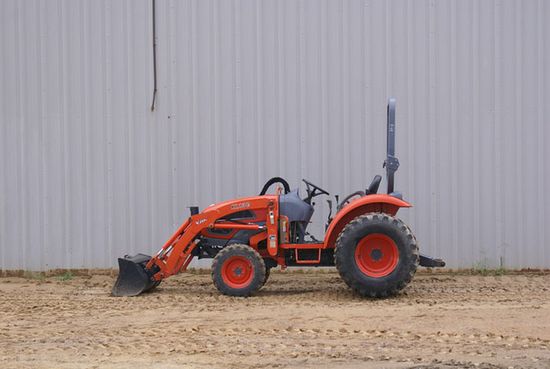

Kioti CK30

Production: 2004 - 2014

Production
Manufacturer:	Kioti (a part of Daedong)
Type:	Compact Utility tractor
Factory:	Daegu, South Korea

Variants
CK30:	gear
CK30HST:	hydrostatic

Kioti CK30 Power
Engine (gross):	30 hp 22.4 kW
Gear PTO (claimed):	23 hp 17.2 kW
Hydro PTO (claimed):	22 hp 16.4 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Steering:	power
Brakes:	wet disc
Cab:	Two-post foldable ROPS. Canopy optional.
Transmissions:	8-speed synchronized shuttle
hydrostatic

Hydraulics
Valves:	0 to 2
Total flow:	12.7 gpm 48.1 lpm

Tractor hitch
Rear Type:	I
Rear lift (at 24"/610mm):	1,764 lbs 800 kg

Power Take-off (PTO)
Rear PTO:	live (two-stage clutch)
Rear RPM:	540/1000
Mid RPM:	2000

Electrical
Ground:	negative
Battery volts:	12

Engine Detail
Daedong 3A150D
diesel
3-cylinder
liquid-cooled
Engine model 3A150E used on the CK30HST.
Displacement:	91.5 ci 1.5 L
Bore/Stroke:	3.27x3.64 inches 83 x 92 mm
Emissions:	Tier II
Power (gross):	30 hp 22.4 kW
Pre-heating:	glow plugs
Rated RPM:	2600
Starter volts:	12

Dimensions
Wheelbase:	66.1 inches 167 cm
Length:	122.2 inches 310 cm
Width:	54.6 inches 138 cm
Height (ROPS):	96.8 inches 245 cm
Gear Weight:	3042 lbs 1379 kg
Hydro Weight:	3055 lbs 1385 kg
Ground clearance:	13.82 inches 35 cm
Front tread:	43.5 inches 110 cm
Rear tread:	38.2 to 51.3 inches 97 to 130 cm
