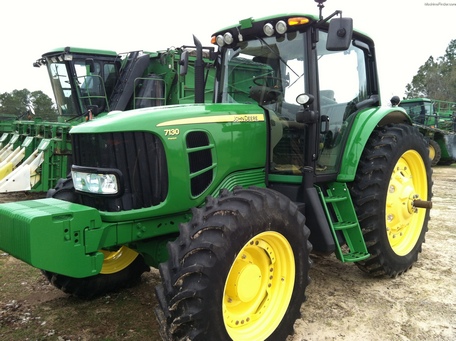

John Deere 7130
Type: Row-crop Tractors
Contents:
Production | |
| Manufacturer: | John Deere |
| Type: | Row-Crop tractor |
| Factory: | Mannheim, Baden-Württemberg, Germany |
| The basic Deere 7130 was available a basic cab or open-operator station with ROPS. Upgraded hydraulics and hitch were optional on open-operator station models. Upgraded systems with a cab were only available on the 7130 Premium. | |
Variants | |
| base tractor | |
| deluxe tractor |
John Deere 7130 Power | |
| Engine (gross): | 125 hp 93.2 kW |
| PTO (claimed): | 100 hp 74.6 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| 4x4 MFWD 4WD (optional) | |
| Steering: | hydrostatic power |
| Brakes: | differential hydraulic wet disc |
| Cab: | Two-post Roll-Gard ROPS. Cab optional. |
| Transmissions: | 12-speed full synchro shift |
| 16-speed full synchro shift | |
| 16-speed partial power shift | |
| 24-speed partial power shift | |
Capacity | |
| Fuel: | 54.7 gal 207.0 L |
| 66 gal 249.8 L (optional) | |
| Hydraulic system: | 13.7 gal 51.9 L |
| 15.9 gal 60.2 L | |
| Front axle: | 8.8 qts 8.3 L |
| Front hubs: | 1.6 qts 1.5 L |
Hydraulics | |
| Type: | constant flow load sensing |
| closed-center load sensing (optional with ROPS) | |
| Capacity: | 13.7 gal 51.9 L |
| 15.9 gal 60.2 L | |
| Pressure: | 2900 psi 200.0 bar |
| Valves: | 1 to 4 |
| Pump flow: | 21.1 gpm 79.9 lpm |
| 29 gpm 109.8 lpm (optional with ROPS) | |
Tractor hitch | |
| Rear Type: | II |
| Control: | position control |
| electronic lower-link (optional with ROPS) | |
| Rear lift (at 24"/610mm): | 5,915 lbs 2683 kg |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Rear RPM: | 540/1000 |
7130 Serial Numbers | |
| Location: | Right side of main frame above front axle |
Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| Charging amps: | 90 |
| Battery volts: | 12 |
Engine Detail | |
| John Deere 6068HL280 | |
| turbocharged diesel | |
| 6-cylinder 12-valve | |
| liquid-cooled | |
| Displacement: | 414.4 ci 6.8 L |
| Bore/Stroke: | 4.19x5.00 inches 106 x 127 mm |
| Emissions: | Tier III |
| Rated Power (EC 97/98): | 121 hp 90.2 kW |
| Air cleaner: | dual paper elements |
| Rated RPM: | 2300 |
| Idle RPM: | 850-2460 |
| Operating RPM: | 1600-2300 |
| Torque: | 358 lb-ft 485.4 Nm |
| Torque RPM: | 1500 |
| Firing order: | 1-5-3-6-2-4 |
| Starter volts: | 12 |
| Starter power: | 4 hp 3.0 kW |
| Oil capacity: | 20.8 qts 19.7 L |
| Intake valve clearance: | 0.014 inches 0.356 mm |
| Exhaust valve clearance: | 0.018 inches 0.457 mm |
Dimensions | |
| Wheelbase: | 106.3 inches 270 cm (2WD) |
| 104.3 inches 264 cm | |
| Length: | 187.3 inches 475 cm |
| Width: | 65.5 inches 166 cm (flange axle ends) |
| Clearance (front axle): | 21.6 inches 54 cm (2WD) |
| 23 inches 58 cm (4WD) | |
| Clearance (rear axle): | 28.2 inches 71 cm |
| Clearance (drawbar): | 19 inches 48 cm |
| Rear axle: | 65.5 inch length 1663 mm |
| Rear axle: | 3.1 by 100.6 inches 78 by 2555 mm |
| Front tread: | 59.5 to 85.5 inches 151 to 217 cm (2WD) |
| Front tread: | 59.4 to 88 inches 150 to 223 cm (4WD) |
| Rear tread: | 63.5 to 72.5 inches 161 to 184 cm |
