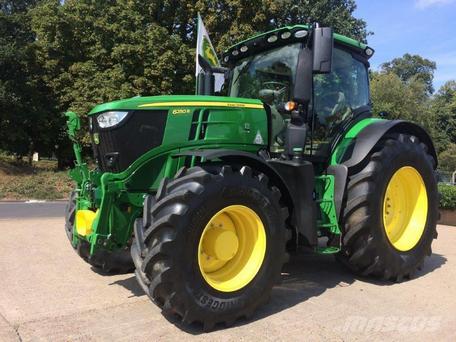

John Deere 6250R
Type: Row-crop Tractors
Contents:
Production | |
| Manufacturer: | John Deere |
| Type: | Row-Crop tractor |
| Factory: | Mannheim, Baden-Württemberg, Germany |
John Deere 6250R Power | |
| Engine (gross): | 250 hp 186.4 kW |
| Engine (net): | 239 hp 178.2 kW |
| Engine (max): | 290 hp 216.3 kW |
Mechanical | |
| Chassis: | 4x4 MFWD 4WD |
| Differential lock: | electro-hydraulic front and rear |
| Steering: | power |
| Trailer brakes: | hydraulic*Optional |
| pneumatic*Optional | |
| Cab: | ComfortView Cab with active hydraulic suspension and air-conditioning. AutoTrac ready |
| Transmission: | infinitely-variable transmission (IVT) |
Hydraulics | |
| Type: | closed-center pressure flow compensated |
| Valves: | up to 6 |
| Pump flow: | 42.3 gpm 160.1 lpm |
Tractor hitch | |
| Rear Type: | IIIN |
| Rear lift (at 24"/610mm): | 15432 lbs 6999 kg |
| Front Hitch: | IIIN |
| Front lift: | 9700 lbs 4399 kg |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Clutch: | electro-hydraulic wet disc |
| Front PTO: | independent |
| Clutch: | electro-hydraulic wet disc |
| Front RPM: | 1000 |
| Engine RPM: | 1000@1969 |
Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| Battery volts: | 12 |
Engine Detail | |
| John Deere PowerTech PSS | |
| turbocharged | |
| 6-cylinder | |
| liquid-cooled | |
| Displacement: | 415 ci 6.8 L |
| Bore/Stroke: | 4.15x5.00 inches 105 x 127 mm |
| Emissions: | Stage IV |
| Emission control: | diesel particulate filter, diesel oxidation catalyst, and selective catalytic reduction |
| Rated Power (ECE R24): | 239 hp 178.2 kW |
| Rated Power (EC 97/98): | 250 hp 186.4 kW |
| Maximum Power (ECE R24): | 290 hp 216.3 kW |
| Maximum Power (EC 97/68): | 290 hp 216.3 kW |
| Fuel system: | electronic high-pressure common rail |
| Cooling system: | electric-drive fan |
| Rated RPM: | 2100 |
| Operating RPM: | 1600-2100 |
| Torque: | 861 lb-ft 1167.5 Nm |
| Torque RPM: | 1600 |
| Starter: | electric |
| Starter volts: | 12 |
| Coolant capacity: | 30.6 qts 29.0 L |
Transmission | |
| Transmission: | AutoPowr |
| Type: | infinitely-variable transmission (IVT) |
| Gears: | infinite forward and reverse |
Dimensions | |
| Wheelbase: | 114.2 inches 290 cm |
| Length: | 204.3 inches 518 cm |
| Width: | 100.4 inches 255 cm |
| Height (cab): | 128 inches 325 cm |
| Shiping weight: | 20503 lbs 9300 kg |
| Max weight: | 33069 lbs 15000 kg |
| Front axle: | Triple Link Suspension |
