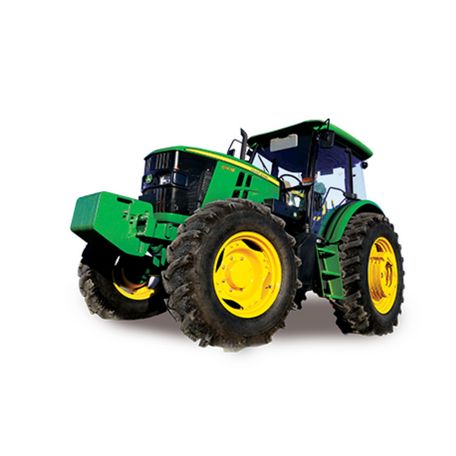

John Deere 6110B

Production: 2010

Production
Manufacturer:	John Deere
Type:	Utility tractor
Factory:	Tianjin, China

John Deere 6110B Power
Engine:	117 hp 87.2 kW
PTO (claimed):	100 hp 74.6 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Steering:	power
Brakes:	mechanical wet disc
Cab:	Four-post ROPS.
Transmission:	9-speed unsynchronized gear

Capacity
Fuel:	39.6 gal 149.9 L
Hydraulic system:	15.85 gal 60.0 L

Hydraulics
Type:	open center
Capacity:	15.85 gal 60.0 L
Valves:	0 to 3
Pump flow:	18 gpm 68.1 lpm
Steering flow:	7.1 gpm 26.9 lpm

Tractor hitch
Rear Type:	II
Rear lift (at ends):	7647 lbs 3468 kg
Rear lift (at 24"/610mm):	6945 lbs 3150 kg
Rear Arms:	fixed link ends

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540/1000 (1.375)
Engine RPM:	540@2100 1000@2100

6110B Serial Numbers
Location:	Right side of tractor frame above the front axle.

Electrical
Ground:	negative
Charging system:	alternator
Charging amps:	75
Battery CCA:	925
Battery volts:	12

Engine Detail
John Deere
turbocharged diesel
6-cylinder
liquid-cooled inline
Displacement:	414.4 ci 6.8 L
Bore/Stroke:	4.173x5.00 inches 106 x 127 mm
Power:	117 hp 87.2 kW
Fuel system:	direct injection
Compression:	17:1
Rated RPM:	2100
Firing order:	1-5-3-6-2-4
Starter:	electric
Starter volts:	12
Starter power:	5.6 hp 4.2 kW
Coolant capacity:	17.4 qts 16.5 L

Transmission
Type:	unsynchronized gear
Gears:	9 forward and 3 reverse
Clutch:	304.8mm dry disc
Oil type:	63.4

Dimensions
Wheelbase:	104.1 inches 264 cm
Length:	187.6 inches 476 cm
Width:	65 inches 165 cm
Height (exhaust):	155.6 inches 395 cm
Clearance (front axle):	17.1 inches 43 cm
Clearance (rear axle):	26.4 inches 67 cm
Clearance (drawbar):	18.4 inches 46 cm
Front tread:	56.7 to 79.4 inches 144 to 201 cm
Rear tread:	59.5 to 79.4 inches 151 to 201 cm
