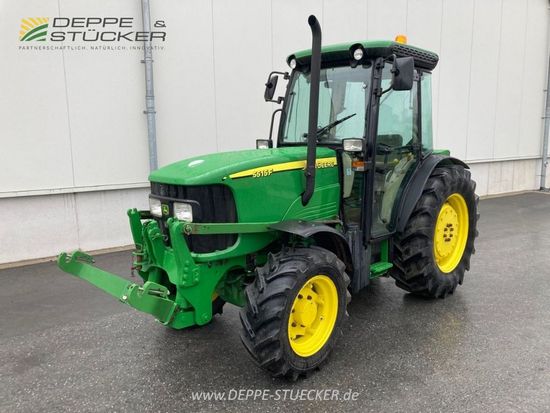

John Deere 5515
Type: Utility Tractors
Contents:
Production | |
| Distributor: | John Deere |
| Manufacturer: | Agritalia |
| Type: | Utility tractor |
| Factory: | Italy |
Variants | |
| utility | |
| narrow | |
| narrow low-profile | |
| High Crop high clearance tractor |
John Deere 5515 Power | |
| Engine (gross): | 82 hp 61.1 kW |
| Engine (net): | 80 hp 59.7 kW |
Mechanical | |
| Steering: | hydrostatic power |
| Brakes: | hydraulic wet disc |
| Trailer brakes: | hydraulic*Optional. |
| Transmissions: | 12-speed partially synchronized |
| 24-speed partially synchronized | |
| 24-speed two-speed power shift | |
Hydraulics | |
| Type: | open center |
| Pressure: | 1900 psi 131.0 bar |
| Pump flow: | 12.4 gpm 46.9 lpm |
| 15.8 gpm 59.8 lpm (optional) | |
| Steering flow: | 6.5 gpm 24.6 lpm |
| Steering press.: | 2700 psi 186.2 bar |
Tractor hitch | |
| Rear Type: | 2/1 |
| Rear lift (at ends): | 5,845 lbs 2651 kg |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Clutch: | dry disc |
| Rear RPM: | 540/540E/1000 |
| Engine RPM: | 540@1938 540E@1648 1000@1962 |
5515 Serial Numbers | |
| Location: | Left side of tractor frame above front axle. |
Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| Charging amps: | 40 (ROPS) |
| 65 (with cab) | |
| Battery volts: | 12 |
| Battery AH: | 100 |
Engine Detail | |
| John Deere 4045TAT70 | |
| turbocharged diesel | |
| 4-cylinder | |
| liquid-cooled | |
| Displacement: | 276 ci 4.5 L |
| Bore/Stroke: | 4.19x5.00 inches 106 x 127 mm |
| Rated Power (ECE R24): | 80 hp 59.7 kW |
| Rated Power (EC 97/98): | 82 hp 61.1 kW |
| Compression: | 17.0:1 |
| Rated RPM: | 2300 |
| Idle RPM: | 825-2510 |
| Operating RPM: | 1200-2300 |
| Torque: | 231.6 lb-ft 314.0 Nm |
| Torque RPM: | 1500 |
| Firing order: | 1-3-4-2 |
| Starter: | electric |
| Starter volts: | 12 |
| Starter power: | 3.8 hp 2.8 kW |
| Coolant capacity: | 12.6 qts 11.9 L (ROPS) |
| 13.7 qts 13.0 L (with cab) | |
| Intake valve clearance: | 0.014 inches 0.356 mm |
| Exhaust valve clearance: | 0.018 inches 0.457 mm |
Dimensions | |
| Length: | 139.76 inches 354 cm (5515F/V) |
| Clearance (front axle): | 8.94 inches 22 cm (5515V) |
| 10.83 inches 27 cm (5515F 4WD) | |
| 13.58 inches 34 cm (5515F 2WD) | |
| 15.75 inches 40 cm (4WD) | |
| 17.13 inches 43 cm (2WD) | |
