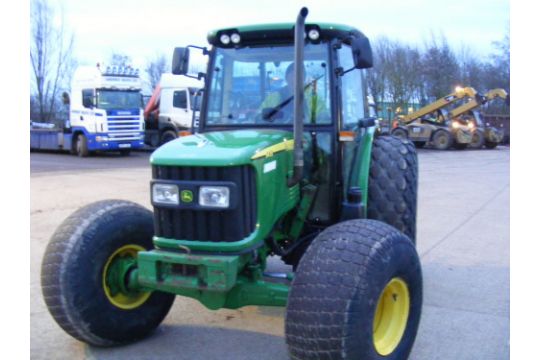

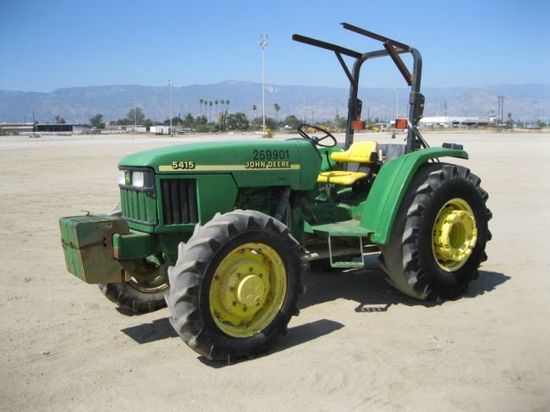

Deere 5415

Production: 2003 - 2008

Production
Distributor:	John Deere
Manufacturer:	Agritalia
Type:	Utility tractor
Factory:	Italy

Variants
5415HC:	High Crop tractor with high clearance
5414N:	narrow-width tractor

John Deere 5415 Power
Engine:	74 hp 55.2 kW

Mechanical
Steering:	hydrostatic power
Brakes:	hydraulic wet disc
Transmissions:	12-speed
24-speed
9-speed

Hydraulics
Type:	open center
Pressure:	1900 psi 131.0 bar
Pump flow:	12.4 gpm 46.9 lpm
15.8 gpm 59.8 lpm *Optional
Steering flow:	6.5 gpm 24.6 lpm
Steering press.:	2700 psi 186.2 bar

Tractor hitch
Rear Type:	2/1
Rear lift (at ends):	5,845 lbs 2651 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540/540E/1000

5415 Serial Numbers
Location:	Left side of tractor frame above front axle.

Electrical
Ground:	negative
Charging system:	alternator
ROPS Charging amps:	40
Cab Charging amps:	65
Battery CCA:	550
Battery volts:	12
Battery AH:	100
Battery Group:	27F

Engine Detail
John Deere 4045DAT70
diesel
4-cylinder
liquid-cooled
Displacement:	276 ci 4.5 L
Bore/Stroke:	4.19x5.00 inches 106 x 127 mm
Power:	74 hp 55.2 kW
Compression:	17.6:1
Rated RPM:	2300
Torque:	199.1 lb-ft 270.0 Nm
Torque RPM:	1600
Firing order:	1-3-4-2
Starter volts:	12
Starter power:	3.8 hp 2.8 kW
ROPS Coolant capacity:	12.6 qts 11.9 L
Cab Coolant capacity:	13.7 qts 13.0 L
Intake valve clearance:	0.014 inches 0.356 mm
Exhaust valve clearance:	0.018 inches 0.457 mm

Dimensions
Length:	125.9 inches 319 cm
Width:	68.7 inches 174 cm
4WD Clearance (front axle):	15.4 inches 39 cm
2WD Clearance (front axle):	18.3 inches 46 cm
4WD High Crop 31 2WD High Crop} Clearance (front axle):	25.6 inches 65 cm
