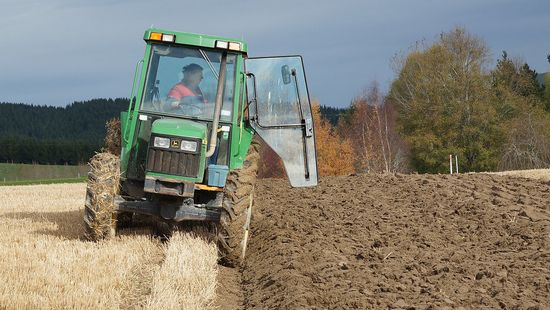

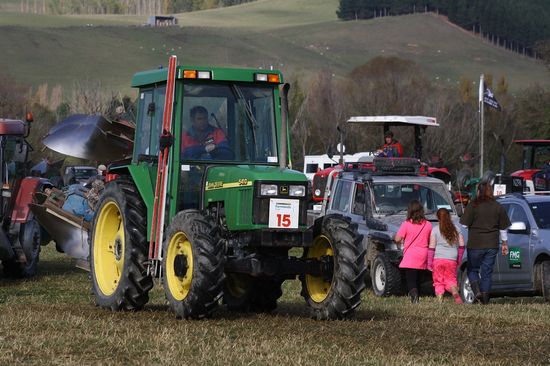

John Deere 5410

Production: 2000 - 2002

Production
Distributor:	John Deere
Manufacturer:	Carraro
Type:	Utility tractor

John Deere 5410 Power
Engine (net):	72 hp 53.7 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD
Differential lock:	mechanical rear
Steering:	hydrostatic power
Brakes:	wet disc
Trailer brakes:	hydraulic*Optional
Cab:	Cab standard.
Transmissions:	12-speed partially synchronized
24-speed partially synchronized
24-speed two-speed power shift

Capacity
Fuel:	21.1 gal 79.9 L
2WD Hydraulic system:	9.5 gal 36.0 L
4WD 12-Speed Hydraulic system:	10 gal 37.9 L
4WD 24-Speed Hydraulic system:	11.4 gal 43.1 L

Hydraulics
Type:	open center
2WD Capacity:	9.5 gal 36.0 L
4WD 12-Speed Capacity:	10 gal 37.9 L
4WD 24-Speed Capacity:	11.4 gal 43.1 L
Pump flow:	10.9 gpm 41.3 lpm
Steering flow:	6.5 gpm 24.6 lpm

Tractor hitch
Rear Type:	II/I
Control:	position and draft control
Rear lift:	5395 lbs 2447 kg

Power Take-off (PTO)
Rear RPM:	540/540E
540/1000
Engine RPM:	540@1938 540E@1648 1000@1962

5410 Serial Numbers
Location:	Serial number plate on left side of frame, above the front axle.

Electrical
Ground:	negative
Charging system:	alternator
ROPS Charging amps:	40
Cab Charging amps:	60
Battery volts:	12
Battery AH:	100

Engine Detail
John Deere 3029TAT50
turbocharged
3-cylinder
liquid-cooled
Displacement:	179 ci 2.9 L
Bore/Stroke:	4.19x4.33 inches 106 x 110 mm
Rated Power (ECE R24):	72 hp 53.7 kW
Compression:	17.2:1
Rated RPM:	2300
Idle RPM:	800-2510
Operating RPM:	1500-2300
Torque:	196.5 lb-ft 266.5 Nm
Torque RPM:	1500
Firing order:	1-2-3
Starter:	electric
Starter volts:	12
Starter power:	3.4 hp 2.5 kW
Oil capacity:	9 qts 8.5 L
ROPS Coolant capacity:	10 qts 9.5 L
Cab Coolant capacity:	11 qts 10.4 L

Dimensions
Wheelbase:	82.7 inches 210 cm
Length:	132 inches 335 cm
Height (cab):	94.5 inches 240 cm
Weight:	6800 lbs 3084 kg
