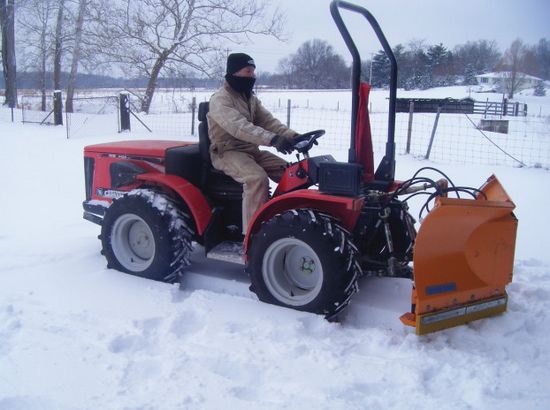

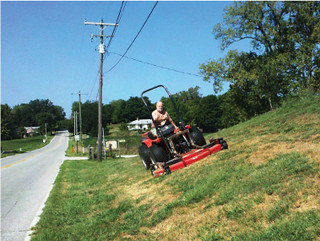

Antonio Carraro TTR 4400

Production
Manufacturer:	Antonio Carraro
Type:	Compact Utility tractor
Factory:	Italy

Antonio Carraro TTR 4400 Power
Engine (gross):	38 hp 28.3 kW

Mechanical
Chassis:	4x4 articulated 4WD
Steering:	hydraulic power
Brakes:	hydraulic drum
Cab:	Two-post folding ROPS. Cab optional with air-conditioning.
Transmission:	hydrostatic

Tractor hitch
Rear Type:	I
Rear lift:	2006.2 lbs 910 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540/1000 (1.375)

Electrical
Ground:	negative
Battery volts:	12

Engine Detail
Yanmar 3TNV88
diesel
3-cylinder
liquid-cooled
Displacement:	100.2 ci 1.6 L
Bore/Stroke:	3.46x3.54 inches 88 x 90 mm
Rated Power (EC 97/98):	38 hp 28.3 kW
Fuel system:	direct injection
Rated RPM:	3000
Torque:	83.3 lb-ft 113.0 Nm
Torque RPM:	1200
Starter:	electric
Starter volts:	12

Transmission
Type:	hydrostatic
Gears:	infinite (3-range) forward and reverse

Dimensions
Wheelbase:	53.5 inches 135 cm
Length:	118.5 inches 300 cm
Width:	47.2 inches 119 cm
Weight:	2811 lbs 1275 kg (ROPS)
3175 lbs 1440 kg (Cab)
