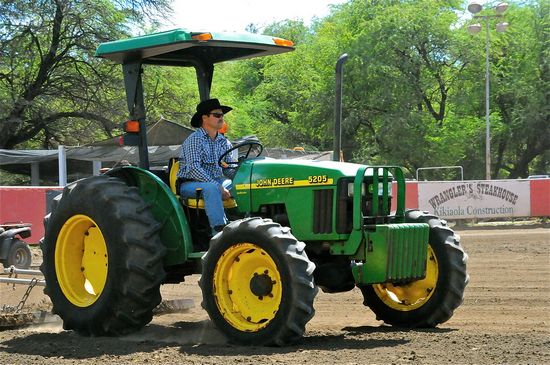

John Deere 5205
Type: Utility Tractors
Contents:
Production | |
| Manufacturer: | John Deere |
| Type: | Utility tractor |
| Factory: | Augusta, Georgia, USA |
John Deere 5205 Power | |
| Engine: | 53 hp 39.5 kW |
| PTO (claimed): | 48 hp 35.8 kW |
| 50 hp 37.3 kW (after SN 522000) | |
| PTO (tested): | 51.97 hp 38.8 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| 4x4 MFWD 4WD | |
| Steering: | hydrostatic power |
| Brakes: | differential mechanical wet disc |
| Cab: | Two-post ROPS. |
| Transmission: | 8-speed partially synchronized |
Capacity | |
| Fuel: | 22.4 gal 84.8 L |
| Hydraulic system: | 8.5 gal 32.2 L |
Hydraulics | |
| Type: | open center |
| Capacity: | 8.5 gal 32.2 L |
| Pressure: | 2800 psi 193.1 bar |
| Valves: | 4 |
| Pump flow: | 10.9 gpm 41.3 lpm |
| Steering flow: | 6.5 gpm 24.6 lpm |
| Steering press.: | 1900 psi 131.0 bar |
Tractor hitch | |
| Rear Type: | II |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Rear RPM: | 540 |
5205 Serial Numbers | |
| Location: | On the right side of the 5205 tractor frame, above the front axle. |
| 2000: | 120001 |
| 2001: | 220001 |
| 2002: | 320001 |
| 2003: | 420001 |
| 2004: | 520001 |
| 2005: | 620001 |
| 2006: | 720001 |
| 2007: | 820001 |
Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| Charging amps: | 40 |
| Battery CCA: | 700 (early) |
| 950 (late) | |
| Battery volts: | 12 |
| Battery Group: | 28H |
Engine Detail | |
| John Deere 3029D | |
| turbocharged diesel | |
| 3-cylinder | |
| liquid-cooled | |
| Displacement: | 179 ci 2.9 L |
| Bore/Stroke: | 4.17x4.33 inches 106 x 110 mm |
| Power: | 53 hp 39.5 kW |
| 56 hp 41.8 kW (SN 52200 on) | |
| Air cleaner: | dual dry element |
| Compression: | 17.4:1 |
| Rated RPM: | 2300 |
| Idle RPM: | 825-2500 |
| Operating RPM: | 1400-2300 |
| Firing order: | 1-2-3 |
| Starter volts: | 12 |
| Coolant capacity: | 10 qts 9.5 L |
Transmission | |
| Transmission: | SyncReverser |
| Type: | partially synchronized |
| Gears: | 8 forward and 4 reverse |
| Clutch: | dry disc |
| Oil capacity: | 34 qts 32.2 L |
| Controlled with foot clutch, plus range speed levers. Four speeds and two forward ranges, plus reverse range. Tractor must be stopped, and clutch used, to shift speed or range. Reverse range to forward A-range may be shifted while tractor tractor is in motion. | |
Dimensions | |
| Wheelbase: | 76.8 inches 195 cm |
| 2WD Length: | 108.9 inches 276 cm |
| 4WD Length: | 128.4 inches 326 cm |
| Width: | 69 inches 175 cm |
| Ground clearance: | 16.7 inches 42 cm |
