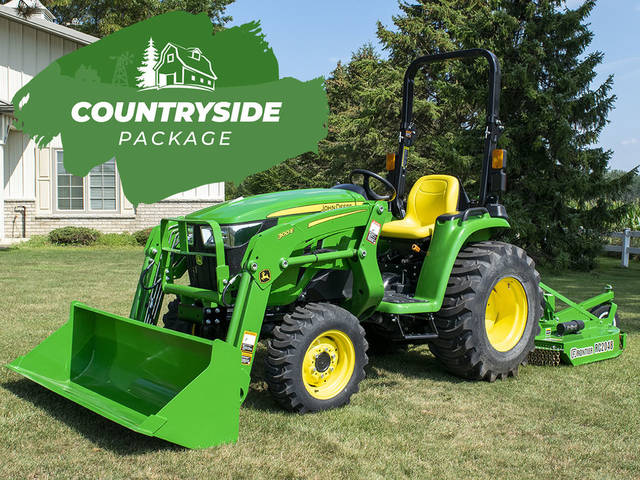

John Deere 3025E
Type: Compact Utility Tractors
Contents:
Production | |
| Manufacturer: | John Deere |
| Type: | Compact Utility tractor |
| Factory: | Augusta, Georgia, USA |
| Original price: | $17,324 (2017 ) |
| Original price: | $18,330 (2020 ) |
John Deere 3025E Power | |
| Engine (gross): | 24.7 hp 18.4 kW |
| PTO (claimed): | 17.4 hp 13.0 kW *The Deere web site sales features claim 19.4 HP. The operator's manual lists 17.4 HP. |
Mechanical | |
| Chassis: | 4x4 MFWD 4WD |
| Final drives: | bull gear |
| Differential lock: | mechanical rear |
| Steering: | power |
| Cab: | Two-post foldable ROPS. |
| Transmission: | hydrostatic |
Hydraulics | |
| Type: | open center |
| Pressure: | 2500 psi 172.4 bar |
| Valves: | 0 to 2 |
| Pump flow: | 5.3 gpm 20.1 lpm |
| Total flow: | 9.3 gpm 35.2 lpm |
| Steering flow: | 4 gpm 15.1 lpm |
Tractor hitch | |
| Rear Type: | I |
| Control: | position control |
| Rear lift (at 24"/610mm): | 1356 lbs 615 kg |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Rear RPM: | 540 (1.375) |
| Engine RPM: | 540@2500 |
3025E Serial Numbers | |
| Location: | Serial number plate on the front right of the tractor frame, above the front axle. |
Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| Charging amps: | 75 |
| Charging volts: | 12 |
| Battery CCA: | 500 |
| Battery volts: | 12 |
Engine Detail | |
| Yanmar 3TNV88F | |
| diesel | |
| 3-cylinder | |
| liquid-cooled | |
| Displacement: | 100.2 ci 1.6 L |
| Bore/Stroke: | 3.46x3.54 inches 88 x 90 mm |
| Emissions: | Tier 4 |
| Power (gross): | 24.7 hp 18.4 kW |
| Fuel system: | high-pressure common rail direct injection |
| Air cleaner: | dual dry element |
| Compression: | 19.1:1 |
| Rated RPM: | 2400 |
| Starter: | electric |
| Starter volts: | 12 |
| Starter power: | 1.9 hp 1.4 kW |
| Oil capacity: | 4.8 qts 4.5 L |
Transmission | |
| Type: | hydrostatic |
| Gears: | infinite (2-range) forward and reverse |
Dimensions | |
| Wheelbase: | 60 inches 152 cm |
| Length: | 152.4 inches 387 cm |
| Clearance (front axle): | 33 inches 83 cm |
