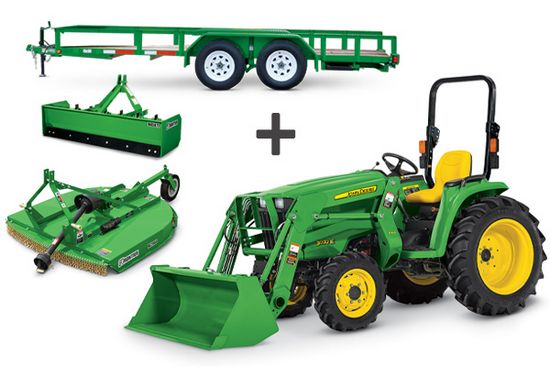

John Deere 3032E
Type: Compact Utility Tractors
Contents:
Production | |
| Manufacturer: | John Deere |
| Type: | Compact Utility tractor |
| Factory: | Augusta, Georgia, USA |
| Original price: | $13,619 (2009 ) |
| Original price: | $18,953 (2016 ) |
John Deere 3032E Power | |
| Engine: | 31.0 hp 23.1 kW |
| PTO (claimed): | 25 hp 18.6 kW |
Mechanical | |
| Chassis: | 4x4 MFWD 4WD |
| Steering: | power |
| Brakes: | wet disc |
| Cab: | Two-post folding ROPS. |
| Transmission: | hydrostatic |
Capacity | |
| Fuel: | 6.4 gal 24.2 L |
| Hydraulic system: | 5.5 gal 20.8 L |
Hydraulics | |
| Type: | open center |
| Capacity: | 5.5 gal 20.8 L |
| Pressure: | 2500 psi 172.4 bar |
| Pump flow: | 5.3 gpm 20.1 lpm |
| Total flow: | 9.3 gpm 35.2 lpm |
| Steering flow: | 4.0 gpm 15.1 lpm |
| Steering press.: | 1500 psi 103.4 bar |
Tractor hitch | |
| Rear Type: | I |
| Rear lift (at 24"/610mm): | 1356 lbs 615 kg |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Rear RPM: | 540 |
Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| Charging amps: | 40 |
| Battery CCA: | 500 |
| Battery volts: | 12 |
| Battery Group: | 22NF |
Engine Detail | |
| Yanmar 3TNV86 | |
| turbocharged diesel | |
| 3-cylinder | |
| liquid-cooled | |
| Displacement: | 95.7 ci 1.6 L |
| Bore/Stroke: | 3.50x3.54 inches 89 x 90 mm |
| Power: | 31.0 hp 23.1 kW |
| Air cleaner: | dry type |
| Compression: | 19:1 |
| Rated RPM: | 2400 |
| Torque: | 80 lb-ft 108.5 Nm |
| Torque RPM: | 1680 |
| Starter volts: | 12 |
| Starter power: | 1.9 hp 1.4 kW |
| Coolant capacity: | 4.4 qts 4.2 L |
Transmission | |
| Type: | hydrostatic |
| Gears: | infinite (2-range) forward and reverse |
| Oil capacity: | 22 qts 20.8 L *The 2014 printing of the operator manual incorrectly lists the capacity as 14L. |
| Mechanically-controlled two-range hydrostatic transmission. Tractor must be stopped before shifting ranges. | |
Dimensions | |
| Wheelbase: | 60 inches 152 cm |
| Length: | 111 inches 281 cm |
| Width: | 56.5 inches 143 cm (min) |
| 58 inches 147 cm (max) | |
| Height (hood): | 51 inches 129 cm |
| Height (ROPS): | 82.3 inches 209 cm |
| Operating weight: | 2175 lbs 986 kg |
| Max weight: | 4410 lbs 2000 kg |
