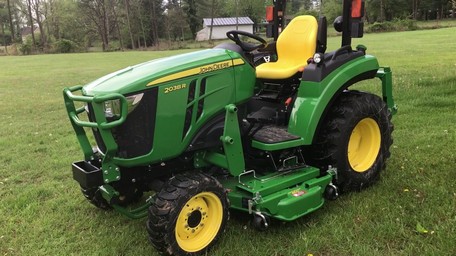

John Deere 2038R

Production: 2017

Production
Manufacturer:	John Deere
Type:	Compact Utility tractor
Factory:	Augusta, Georgia, USA
Original price:	$23,958 (2017 )

John Deere 2038R Power
Engine (gross):	37.3 hp 27.8 kW
PTO (claimed):	30.4 hp 22.7 kW

Mechanical
Final drives:	spur gear
Differential lock:	mechanical rear
Steering:	power
Brakes:	wet disc
Cab:	Two-post foldable ROPS.
Transmission:	hydrostatic

Hydraulics
Type:	open center
Pressure:	2500 psi 172.4 bar
Valves:	0 to 3
Pump flow:	5.3 gpm 20.1 lpm
Total flow:	9.3 gpm 35.2 lpm
Steering flow:	4 gpm 15.1 lpm

Tractor hitch
Rear Type:	I
Control:	position control
Rear lift (at 24"/610mm):	1356 lbs 615 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540 (1.375)
Mid RPM:	2000

Electrical
Ground:	negative
Charging system:	alternator
Charging amps:	85
Charging volts:	12
Battery CCA:	500
Battery volts:	12

Engine Detail
Yanmar 3TNV88C-NJT
turbocharged
3-cylinder
liquid-cooled
Displacement:	95.8 ci 1.6 L
Bore/Stroke:	3.39x3.54 inches 86 x 90 mm
Emissions:	Tier IV
Power (gross):	37.3 hp 27.8 kW
Fuel system:	direct injection
Air cleaner:	dual dry element
Compression:	19.1:1
Rated RPM:	2500
Starter:	electric
Starter volts:	12
Starter power:	1.9 hp 1.4 kW
Oil capacity:	4.8 qts 4.5 L

Transmission
Type:	hydrostatic
Gears:	infinite forward and reverse

Dimensions
Wheelbase:	67.9 inches 172 cm
