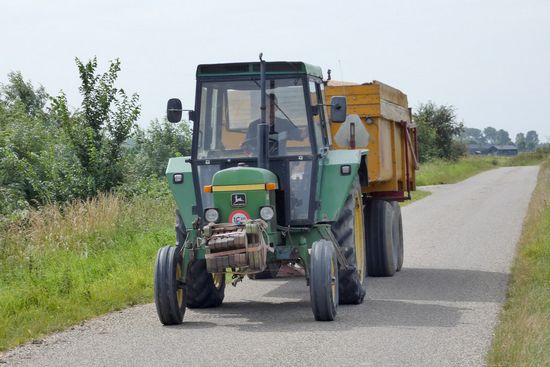

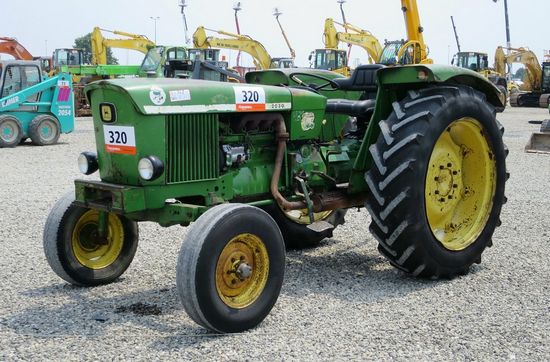

John Deere 2030
Type: Utility Tractors
Contents:
Production | |
| Manufacturer: | John Deere |
| Type: | Utility tractor |
| Factories: | Dubuque, Iowa, USA |
| Mannheim, Baden-Württemberg, Germany | |
| Original price: | $9,000 (1975 ) |
John Deere 2030 Power | |
| Engine: | 68 hp 50.7 kW |
| Drawbar (claimed): | 51 hp 38.0 kW |
| PTO (claimed): | 60.34 hp 45.0 kW |
| Drawbar (tested): | 50.42 hp 37.6 kW |
| PTO (tested): | 60.65 hp 45.2 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| Steering: | power assist |
| Brakes: | hydraulic wet disc |
| Cab: | Open operator station. Optional two-post ROPS with canopy. |
| Transmissions: | 8-speed |
| 16-speed partial power shift | |
Capacity | |
| Fuel: | 19.5 gal 73.8 L |
| Hydraulic system: | 10 gal 37.9 L |
Hydraulics | |
| Type: | closed center |
| Capacity: | 10 gal 37.9 L |
| Pressure: | 2250 psi 155.1 bar |
| Pump flow: | 6 gpm 22.7 lpm (transmission) |
| 8.5 gpm 32.2 lpm (remotes) | |
| 18.5 gpm 70.0 lpm (optional) | |
| Total flow: | 14.5 gpm 54.9 lpm |
| 24.5 gpm 92.7 lpm *Optional | |
Tractor hitch | |
| Rear Type: | II/I |
Power Take-off (PTO) | |
| Rear PTO: | live |
| independent*Optional | |
| Rear RPM: | 540 |
| 540/1000 | |
| Mid PTO: | optional |
| Mid RPM: | 1000 |
2030 Serial Numbers | |
| Location: | Right side of grill or transmission case. |
| 1972: | 134700 |
| 1973: | 157109 |
| 1974: | 187301T (USA) |
| 1974: | 140000L (Germany) |
| 1975: | 213360T (USA) |
| 1975: | 145500L (Germany) |
Electrical | |
| Ground: | negative |
| Batteries: | 1 |
| 2 | |
| Battery CCA: | 370 |
| Battery volts: | 12 |
Engine Detail | |
| John Deere | |
| diesel | |
| 4-cylinder | |
| liquid-cooled | |
| Displacement: | 219.4 ci 3.6 L |
| Bore/Stroke: | 4.02x4.33 inches 102 x 110 mm |
| Power: | 68 hp 50.7 kW |
| Compression: | 16.2:1 |
| Rated RPM: | 2500 |
| Firing order: | 1-3-4-2 |
| Starter volts: | 12 |
| Oil capacity: | 6 qts 5.7 L |
| Coolant capacity: | 12 qts 11.4 L |
| Intake valve clearance: | 0.014 inches 0.356 mm |
| Exhaust valve clearance: | 0.018 inches 0.457 mm |
Dimensions | |
| Wheelbase: | 85.75 inches 217 cm (straight axle) |
| 79.375 inches 201 cm (swept axle) | |
| Length: | 139.5 inches 354 cm |
| Width: | 69.5 inches 176 cm |
| Height (hood): | 55.75 inches 141 cm |
| Height (exhaust): | 81.25 inches 206 cm |
| Shiping weight: | 4800 lbs 2177 kg |
| Operating weight: | 5230 lbs 2372 kg |
| Front tread: | 49 to 75 inches 124 to 190 cm (straight axle) |
| Front tread: | 49 to 74 inches 124 to 187 cm (swept axle) |
| Front tread: | 60 to 88 inches 152 to 223 cm (straight extra-wide) |
| Front tread: | 53 to 73 inches 134 to 185 cm (heavy-duty) |
| Rear tread: | 54 to 78 inches 137 to 198 cm |
