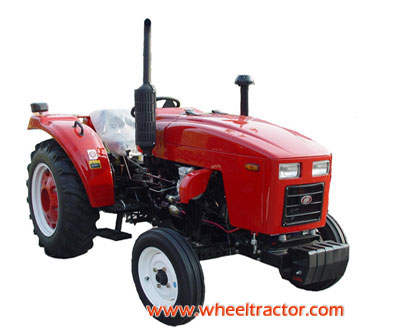

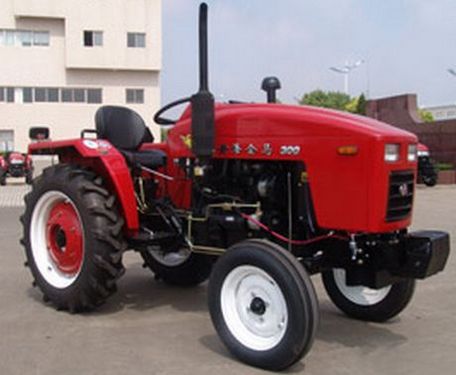

Jinma JM-300

Production
Manufacturer:	Jinma
Factory:	Yancheng City, China

Jinma JM-300 Power
Engine:	30 hp 22.4 kW

Mechanical
Chassis:	4x2 2WD
Transmission:	8-speed

Hydraulics
Type:	closed
Valves:	1
Pump flow:	3.17 gpm 12.0 lpm

Tractor hitch
Rear Type:	I
Rear lift:	1112 lbs 504 kg

Power Take-off (PTO)
Rear PTO:	live
Rear RPM:	540, 720

Engine Detail
Jinma
diesel
3-cylinder
liquid-cooled
Displacement:	136.1 ci 2.2 L
Bore/Stroke:	3.74x4.134 inches 95 x 105 mm
Power:	30 hp 22.4 kW
Compression:	18:1
Rated RPM:	2000
Starter volts:	12
Oil capacity:	6.3 qts 6.0 L
Coolant capacity:	7.6 qts 7.2 L

Transmission
Gears:	8 forward and 2 reverse

Dimensions
Wheelbase:	70.2 inches 178 cm
Length:	122.2 inches 310 cm
Width:	57.1 inches 145 cm
Height:	76.9 inches 195 cm
Weight:	3263 lbs 1480 kg
