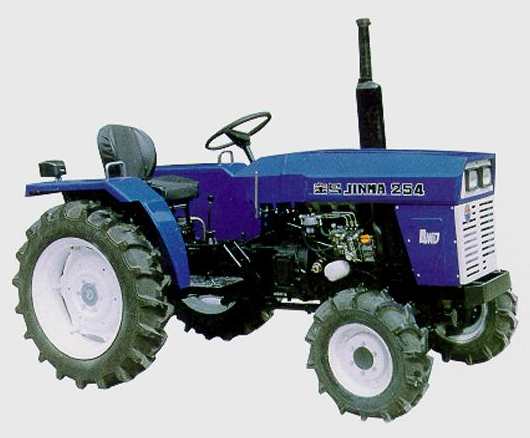

Jinma JM-254

Production
Manufacturer:	Jinma
Type:	Compact Utility tractor
Factory:	Yancheng City, China

Jinma JM-254 Power
Engine:	25 hp 18.6 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Cab:	Two-post ROPS.
Transmission:	12-speed

Capacity
Fuel:	5.8 gal 22.0 L
Hydraulic system:	2.38 gal 9.0 L

Hydraulics
Type:	open center
Capacity:	2.38 gal 9.0 L
Valves:	1

Tractor hitch
Rear Type:	I
Rear lift:	875 lbs 396 kg

Power Take-off (PTO)
Rear PTO:	live*2-stage clutch
Rear RPM:	540/1000

Engine Detail
Jinma Y385
diesel
3-cylinder
liquid-cooled
Displacement:	93.5 ci 1.5 L
Bore/Stroke:	3.346x3.543 inches 85 x 90 mm
Power:	25 hp 18.6 kW
Compression:	22:1
Rated RPM:	2350
Starter volts:	12
Oil capacity:	6.3 qts 6.0 L
Coolant capacity:	8.44 qts 8.0 L

Transmission
Gears:	12 forward and 4 reverse

Dimensions
Wheelbase:	64.9 inches 164 cm
Length:	117.8 inches 299 cm
Width:	51.1 inches 129 cm
Height:	56.6 inches 143 cm
Weight:	2514 lbs 1140 kg
