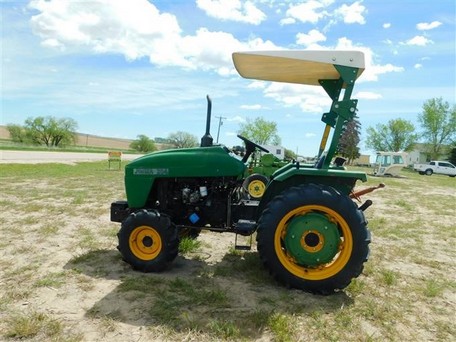

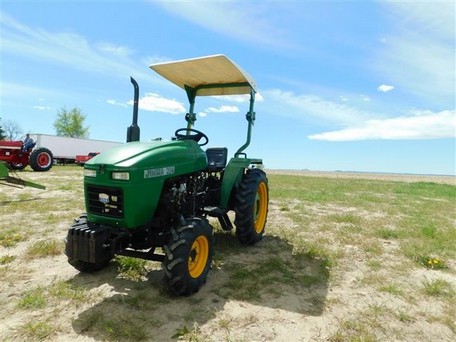

Jinma JM-204

Contents:

Production

Manufacturer:Jinma
Factory:Yancheng City, China

Jinma JM-204 Power

Engine:20 hp 14.9 kW

Mechanical

Chassis:4x4 MFWD 4WD
Transmission:12-speed

Hydraulics

Type:closed
Valves:1

Tractor hitch

Rear Type:I
Rear lift:809 lbs 366 kg

Power Take-off (PTO)

Rear PTO:live (2-stage clutch)
Rear RPM:540, 1000

Engine Detail

Jinma
diesel
2-cylinder
liquid-cooled
Displacement:77.6 ci 1.3 L
Bore/Stroke:3.543x3.937 inches 90 x 100 mm
Power:20 hp 14.9 kW
Compression:18:1
Rated RPM:2200
Starter volts:12
Oil capacity:3.7 qts 3.5 L
Coolant capacity:10.56 qts 10.0 L

Transmission

Gears:12 forward and 4 reverse

Dimensions

Wheelbase:59.8 inches 151 cm
Length:104.5 inches 265 cm
Width:48.6 inches 123 cm
Height:51.2 inches 130 cm
Weight:2613 lbs 1185 kg
