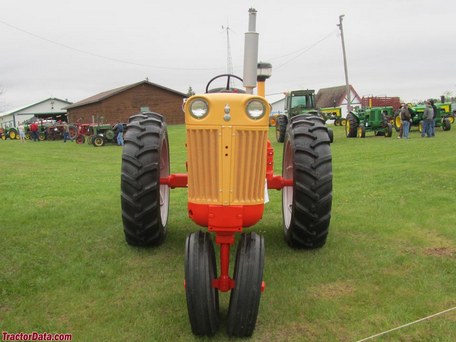

J.I. Case 801-B
Type: Row-crop Tractors
Contents:
Production | |
| Manufacturer: | J.I. Case |
| Type: | Row-Crop tractor |
| Factory: | Racine, Wisconsin, USA |
| Original price: | $5,600 (1960 ) |
Variants | |
| diesel standard | |
| diesel row-crop | |
| diesel Western special | |
| diesel high-crop | |
| gas standard | |
| gas row-crop | |
| gas Western special | |
| gas high-crop |
J.I. Case 801-B Power | |
| Belt (claimed): | 54 hp 40.3 kW |
| Drawbar (tested): | 51.38 hp 38.3 kW |
| Belt (tested): | 54.42 hp 40.6 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| Steering: | power |
| Brakes: | differential mechanical disc |
| Cab: | Open operator station. |
| Transmission: | 8-speed torque converter |
Tractor hitch | |
| Type: | Case Eagle Hitch |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Rear RPM: | 540 (1.375) |
801-B Serial Numbers | |
| Location: | Serial number plate on the right side of the instrument panel. |
Engine Detail | |
| J.I. Case | |
| diesel | |
| 4-cylinder | |
| liquid-cooled | |
| Displacement: | 267 ci 4.4 L |
| Bore/Stroke: | 4.125x5.00 inches 105 x 127 mm |
| Air cleaner: | oil bath |
| Compression: | 15:1 |
| Rated RPM: | 1800 |
| Starter volts: | 12 |
Transmission | |
| Transmission: | Case-O-Matic |
| Type: | torque converter |
| Gears: | 8 forward and 2 reverse |
| Clutch: | hydraulic wet disc |
| Four gears, plus reservse, in two ranges controlled with a single shift lever. Torque converter transmission with bypass to lock in direct drive. | |
Dimensions | |
| Wheelbase: | 101.75 inches 258 cm (wide front) |
| 92.25 inches 234 cm (tricycle) | |
| Length: | 152.75 inches 387 cm (wide front) |
| 143.375 inches 364 cm (tricycle) | |
| Width: | 85.25 inches 216 cm |
| Height (hood): | 66 inches 167 cm |
| Operating weight: | 6800 lbs 3084 kg |
| Ballasted weight: | 9538 lbs 4326 kg |
| Front tread: | 9.128 to 15.128 inches 23 to 38 cm (tricycle) |
| Front tread: | 53 to 82 inches 134 to 208 cm |
| Rear tread: | 52 to 88 inches 132 to 223 cm |
| Rear tread: | 52 to 96 inches 132 to 243 cm (PAVT) |
| Rear tread: | 52 to 108 inches 132 to 274 cm (long axle) |
| Rear tread: | 52 to 116 inches 132 to 294 cm (PAVT long axle) |
