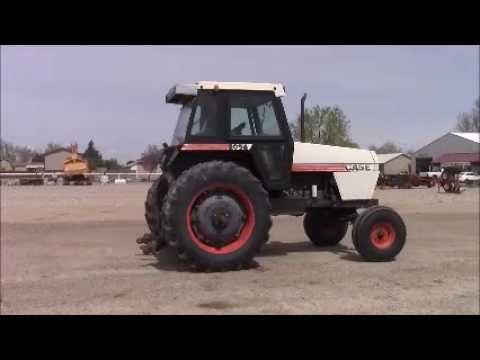

J.I. Case 2094
Type: Row-crop Tractors
Contents:
Production | |
| Manufacturer: | J.I. Case |
| Type: | Row-Crop tractor |
| Factory: | Racine, Wisconsin, USA |
| Original price: | $43,400 (1984 ) |
J.I. Case 2094 Power | |
| Engine: | 127 hp 94.7 kW |
| Drawbar (claimed): | 100 hp 74.6 kW |
| PTO (claimed): | 110 hp 82.0 kW |
| Drawbar (tested): | 98.66 hp 73.6 kW |
| PTO (tested): | 111.50 hp 83.1 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| 4x4 MFWD 4WD | |
| Steering: | power |
| Brakes: | wet disc |
| Cab: | Four-post ROPS. Silent Guardian cab optional with air-conditioning. |
| Transmission: | 12-speed three-speed power shift |
Capacity | |
| Fuel: | 65 gal 246.0 L |
| 25 gal 94.6 L (optional auxiliary tank) | |
| Hydraulic system: | 25 gal 94.6 L |
Hydraulics | |
| Type: | closed center |
| Capacity: | 25 gal 94.6 L |
| Pressure: | 2250 psi 155.1 bar |
| Valves: | 2 to 4 (3 only with 4WD) |
| Pump flow: | 23 gpm 87.1 lpm |
| Steering flow: | 8 gpm 30.3 lpm |
| Steering press.: | 2000 psi 137.9 bar |
Tractor hitch | |
| Rear Type: | II |
| Rear lift (at 24"/610mm): | 6,600 lbs 2993 kg |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Clutch: | hydraulic |
| Rear RPM: | 540/1000 |
2094 Serial Numbers | |
| Location: | Inside cab or on right-front frame |
| 1984: | 9931800 |
Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| Charging amps: | 72 |
| 105*Optional | |
| Battery volts: | 12 |
Engine Detail | |
| Case | |
| diesel | |
| 6-cylinder | |
| liquid-cooled | |
| Displacement: | 504 ci 8.3 L |
| Bore/Stroke: | 4.625x5.00 inches 117 x 127 mm |
| Power: | 127 hp 94.7 kW |
| Compression: | 16:1 |
| Rated RPM: | 2100 |
| Torque: | 366.6 lb-ft 497.1 Nm |
| Torque RPM: | 1575 |
| Starter volts: | 12 |
| Oil capacity: | 19 qts 18.0 L |
| Coolant capacity: | 38 qts 36.0 L |
Transmission | |
| Type: | three-speed power shift |
| Gears: | 12 forward and 3 reverse |
| Oil capacity: | 100 qts 94.6 L |
| Three power-shift gears (1-3), plus reverse, in four ranges (1-4). Reverse does not function in fourth range. | |
Dimensions | |
| Wheelbase: | 104 inches 264 cm |
| 110 inches 279 cm *Optional long wheelbase. | |
| Width: | 96 inches 243 cm |
| 120 inches 304 cm (optional axle) | |
