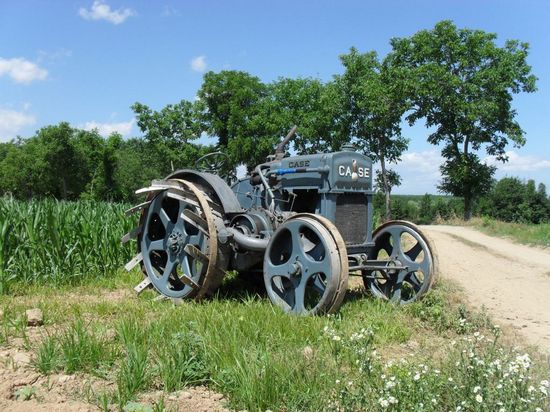

J.I. Case 12-20

Production: 1921 - 1924
Type: Standard-tread Tractors

Contents:

Production

Manufacturer:J.I. Case
Type:Standard-tread tractor
Factory:Racine, Wisconsin, USA

J.I. Case 12-20 Power

Drawbar (claimed):12 hp 8.9 kW
Belt (claimed):20 hp 14.9 kW
Plows:2
Drawbar (tested):17.52 hp 13.1 kW
Belt (tested):25.54 hp 19.0 kW

Mechanical

Chassis:4x2 2WD
Steering:manual
Cab:Open operator station.
Transmission:2-speed gear

Engine Detail

J.I. Case
kerosene
4-cylinder
liquid-cooled
Displacement:267.3 ci 4.4 L
Bore/Stroke:4.125x5.00 inches 105 x 127 mm
Rated RPM:1050
Starter type:hand-crank

Transmission

Transmission:J.I. Case
Type:gear
Gears:2 forward and 1 reverse

Dimensions

Wheelbase:63 inches 160 cm
Length:109 inches 276 cm
Width:58 inches 147 cm
Height:55.5 inches 140 cm
Weight:4,232 lbs 1919 kg
