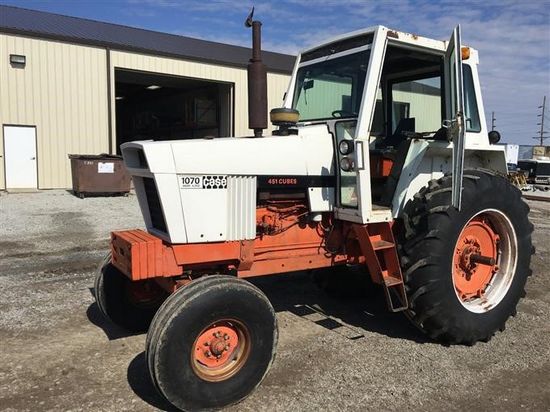

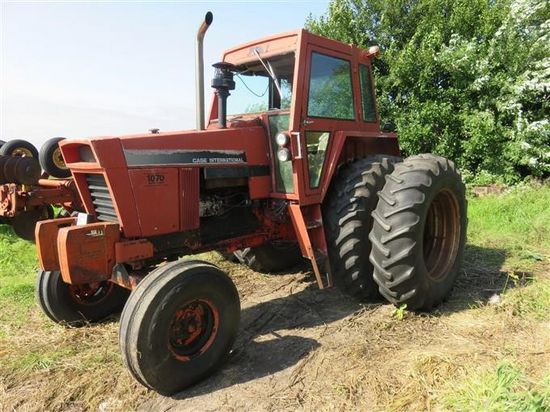

J.I. Case 1070

Production: 1970 - 1978

Production
Manufacturer:	J.I. Case
Type:	Row-Crop tractor
Factory:	Racine, Wisconsin, USA
Total built:	7,561

J.I. Case 1070 Power
Drawbar (claimed):	85 hp 63.4 kW
PTO (claimed):	101 hp 75.3 kW
Drawbar (tested):	90.99 hp 67.9 kW
PTO (tested):	108.10 hp 80.6 kW

Mechanical
Chassis:	4x2 2WD
Steering:	power
Brakes:	differential hydraulic dry disc
Cab:	Cab optional
Transmissions:	8-speed unsynchronized gear
12-speed partial power shift

Hydraulics
Valves:	2
Pump flow:	16 gpm 60.6 lpm

Tractor hitch
Rear Type:	II

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	1000 (1.375)
540/1000 (1.375)
Engine RPM:	540@2000 1000@2000

1070 Serial Numbers
Location:	Plate on instrument panel
1970:	8650001
1971:	8674001
1972:	8691801
1973:	8712001
1974:	8736601
1975:	8770001
1976:	8797501
1977:	8809950
1978:	8830001

Engine Detail
J.I. Case
diesel
6-cylinder
liquid-cooled
Displacement:	451 ci 7.4 L
Bore/Stroke:	4.375x5.00 inches 111 x 127 mm
Air cleaner:	paper element
Compression:	16.5:1
Rated RPM:	2000 (early)
2100 (late)
Starter volts:	12
Coolant capacity:	40 qts 37.9 L

Dimensions
Wide-front Wheelbase:	108 inches 274 cm
Tricycle Wheelbase:	101 inches 256 cm
Length:	162 inches 411 cm
Height (hood):	78 inches 198 cm
Operating weight:	10310 lbs 4676 kg
Ground clearance:	15 inches 38 cm
Front tread:	62 to 90 inches 157 to 228 cm
Rear tread:	62 to 68 inches 157 to 172 cm
