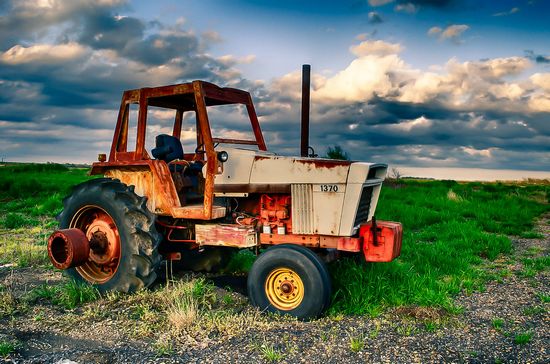

Case 1370

Production: 1971 - 1978

Production
Manufacturer:	J.I. Case
Factory:	Racine, Wisconsin, USA
Total built:	17,413
Original price:	$31,400 (1978)

J.I. Case 1370 Power
Drawbar (tested):	130.9 hp 97.6 kW
PTO (tested):	155.56 hp 116.0 kW

Mechanical
Chassis:	4x2 2WD
Differential lock:	hydraulic
Steering:	hydrostatic power
Brakes:	differential hydraulic wet discs
Cab:	Cab standard. Four-post ROPS and open-station available.
Transmission:	12-speed partial power shift

Capacity
Fuel:	80 gal 302.8 L
Hydraulic system:	34.5 gal 130.6 L

Hydraulics
Type:	variable flow (optional)
Capacity:	34.5 gal 130.6 L
Pressure:	2050 psi 141.3 bar
Valves:	2
Pump flow:	20 gpm 75.7 lpm
Total flow:	28 gpm 106.0 lpm
48 gpm 181.7 lpm (optional)
Steering flow:	8 gpm 30.3 lpm

Tractor hitch
Rear Type:	II, III

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	1000

1370 Serial Numbers
1971:	8674001
1972:	8691801
1973:	8712001
1974:	8736601
1975:	8770001
1976:	8797501
1977:	8810601
1978:	8830001

Electrical
Ground:	negative
Batteries:	2
Battery CCA:	300
Battery volts:	12
Battery Group:	30H

Engine Detail
J.I. Case 504BDT
turbocharged diesel
6-cylinder
liquid-cooled
Power increased in 1973 with engine RPM increase to 2200.
Displacement:	504 ci 8.3 L
Bore/Stroke:	4.625x5.00 inches 117 x 127 mm
Air cleaner:	two-stage dry
Compression:	16.5:1
Rated RPM:	2200
2100 (early)
Firing order:	1-5-3-6-2-4
Starter volts:	12
Oil capacity:	14.9 qts 14.1 L
Coolant capacity:	42 qts 39.7 L

Transmission
Type:	partial power shift
Gears:	12 forward and 3 reverse

Dimensions
Wheelbase:	105 inches 266 cm
Length:	182 inches 462 cm
Width:	96 inches 243 cm
120 inches 304 cm (duals)
Height (ROPS):	106 inches 269 cm
Height (cab):	116 inches 294 cm
Ground clearance:	16 inches 40 cm
