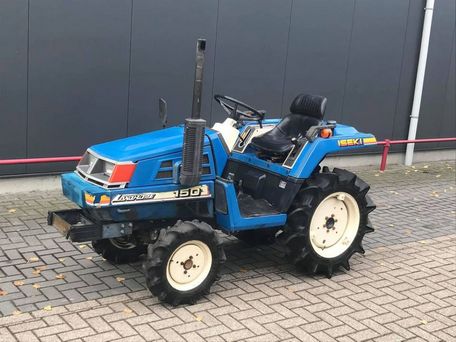

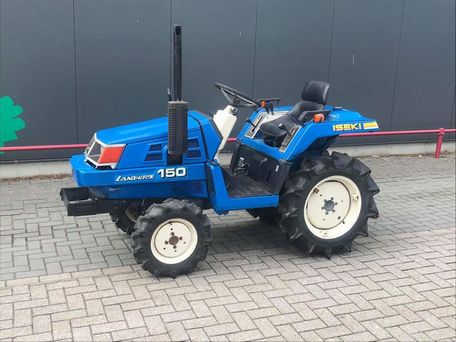

Iseki TU150
Type: Compact Utility Tractors
Contents:
Production | |
| Manufacturer: | Iseki |
| Type: | Compact Utility tractor |
Variants | |
| TU150F: | 4WD |
Iseki TU150 Power | |
| Engine: | 14.8 hp 11.0 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| 4x4 MFWD 4WD | |
| Cab: | Open operator station. |
| Transmission: | 6-speed gear |
Power Take-off (PTO) | |
| Rear RPM: | 540 (1.375) |
| Engine RPM: | 541@2500 735@2500 1188@2500 |
Electrical | |
| Ground: | negative |
| Battery volts: | 12 |
Engine Detail | |
| Mitsubishi K3C | |
| diesel | |
| 3-cylinder | |
| liquid-cooled | |
| Displacement: | 54.9 ci 0.9 L |
| Bore/Stroke: | 2.756x3.071 inches 70 x 78 mm |
| Power: | 14.8 hp 11.0 kW |
| Rated RPM: | 2500 |
| Starter: | electric |
| Starter volts: | 12 |
| Oil capacity: | 2.9 qts 2.7 L |
| Coolant capacity: | 5.8 qts 5.5 L |
Transmission | |
| Type: | gear |
| Gears: | 6 forward and 2 reverse |
| Oil capacity: | 15.9 qts 15.0 L |
| Three gears, plus reverse, in two ranges. | |
Dimensions | |
| Wheelbase: | 49.6 inches 125 cm |
| Length: | 93.3 inches 236 cm |
| Width: | 40.9 inches 103 cm |
| 2WD Height: | 67.3 inches 170 cm |
| 4WD Height: | 66.9 inches 169 cm |
| 2WD Weight: | 1444 lbs 654 kg |
| 4WD Weight: | 1543 lbs 699 kg |
| 2WD Ground clearance: | 11 inches 27 cm |
| 4WD Ground clearance: | 9.8 inches 24 cm |
| 2WD Front tread: | 29.9/31.5 inches 75/80 cm |
| 4WD Front tread: | 32.7 inches 83 cm |
| Rear tread: | 31.5/35.8 inches 80/90 cm |
