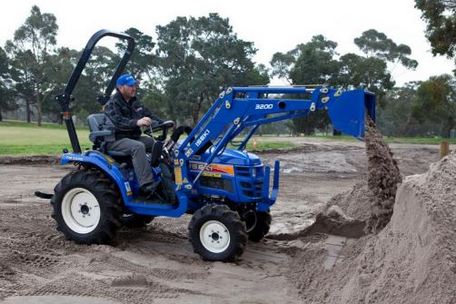

Iseki TM3245

Production: 2010

Production
Manufacturer:	Iseki
Type:	Compact Utility tractor

Iseki TM3245 Power
Engine:	22.3 hp 16.6 kW
PTO (claimed):	17.3 hp 12.9 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Differential lock:	standard
Steering:	hydrostatic power
Brakes:	wet disc
Cab:	Two-post ROPS.
Transmissions:	8-speed gear
hydrostatic

Hydraulics
Type:	open center
Pump flow:	5.52 gpm 20.9 lpm

Tractor hitch
Rear Type:	I
Control:	position control
Rear lift:	1323 lbs 600 kg

Power Take-off (PTO)
Rear PTO:	independent (hydro)
Clutch:	mechanical (gear)
electro-hydraulic (hydro)
Rear RPM:	540 (1.375)
Engine RPM:	567@2600 (gear) 571@2600 (hydro)
Mid RPM:	2000
Engine RPM:	2032@2600 (gear) 2129@2600 (hydro)

Electrical
Ground:	negative
Battery volts:	12

Engine Detail
Iseki E3112
diesel
3-cylinder
liquid-cooled
Displacement:	68.5 ci 1.1 L
Bore/Stroke:	3.08x3.07 inches 78 x 78 mm
Power:	22.3 hp 16.6 kW
Rated RPM:	2500
Starter:	electric
Starter volts:	12

Dimensions
Wheelbase:	61.42 inches 156 cm
Length:	110.4 inches 280 cm
Width:	43.7 inches 110 cm
Weight:	1819 lbs 825 kg
Ground clearance:	9.8 inches 24 cm
