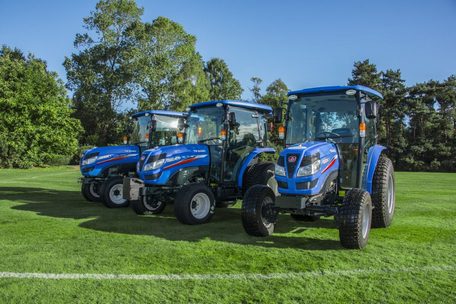

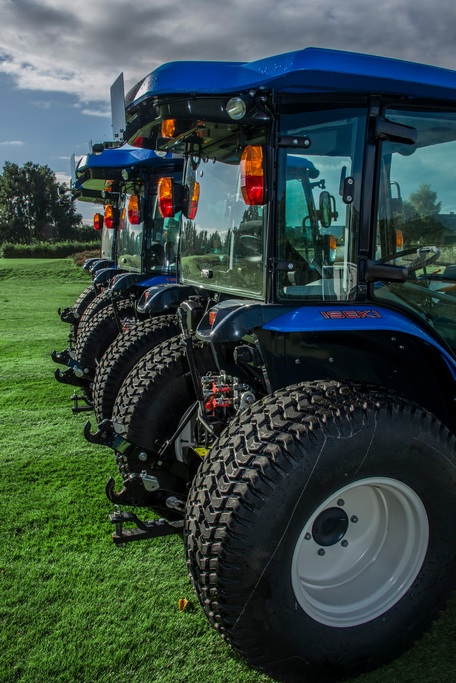

Iseki TG6400

Production: 2015

Production
Manufacturer:	Iseki
Type:	Compact Utility tractor
Factory:	Japan

Iseki TG6400 Power
Engine (gross):	38.5 hp 28.7 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Differential lock:	standard
Steering:	power
Brakes:	wet disc
Cab:	Two-post folding ROPS. Cab optional with air-conditioning.
Transmission:	hydrostatic

Hydraulics
Rear valves:	2
Pump flow:	12.6 gpm 47.7 lpm

Tractor hitch
Rear Type:	I
Control:	position control
Rear lift (at ends):	2800 lbs 1270 kg
Rear lift (at 24"/610mm):	2535 lbs 1149 kg

Power Take-off (PTO)
Rear PTO:	independent
Clutch:	electro-hydraulic
Rear RPM:	540 (1.375)

Electrical
Charging system:	alternator
Battery CCA:	582
Battery volts:	12
Battery AH:	55

Engine Detail
Iseki E3CDT
diesel
3-cylinder
liquid-cooled
Displacement:	91.4 ci 1.5 L
Power (gross):	38.5 hp 28.7 kW
Starter:	electric
Starter volts:	12

Transmission
Type:	hydrostatic
Gears:	infinite (3-range) forward and reverse

Dimensions
Wheelbase:	69.7 inches 177 cm
Length:	120.9 inches 307 cm
Width:	60.8 inches 154 cm
Height (ROPS):	101.2 inches 257 cm
Height (cab):	89.6 inches 227 cm
ROPS Shiping weight:	3053 lbs 1384 kg
Cab Shiping weight:	3384 lbs 1534 kg
