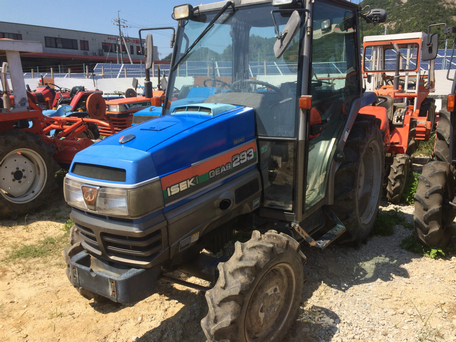

Iseki TG293

Production: 2004

Production
Manufacturer:	Iseki
Type:	Compact Utility tractor

Iseki TG293 Power
Engine:	28.6 hp 21.3 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Steering:	power
Brakes:	wet disc
Cab:	Two-post ROPS. Cab optional.
Transmission:	16-speed

Tractor hitch
Rear Type:	I
Control:	position control

Power Take-off (PTO)
Rear RPM:	600/797/1094/1292 (1.375)

Electrical
Ground:	negative
Battery volts:	12

Engine Detail
Iseki E3CD
diesel
3-cylinder
liquid-cooled
Displacement:	91.4 ci 1.5 L
Power:	28.6 hp 21.3 kW
Rated RPM:	2600
Starter:	electric
Starter volts:	12

Transmission
Gears:	16 forward and reverse
Clutch:	dry disc

Dimensions
Wheelbase:	66.9 inches 169 cm
Length:	120.9 inches 307 cm
ROPS Width:	53.7 inches 136 cm
Cab Width:	55.5 inches 140 cm
Height:	77.4 inches 196 cm
ROPS Weight:	2910 lbs 1319 kg
Cab Weight:	3263 lbs 1480 kg
Ground clearance:	14.4 inches 36 cm
Front tread:	42.9 inches 108 cm
Rear tread:	41.3 to 53.9 inches 104 to 136 cm
