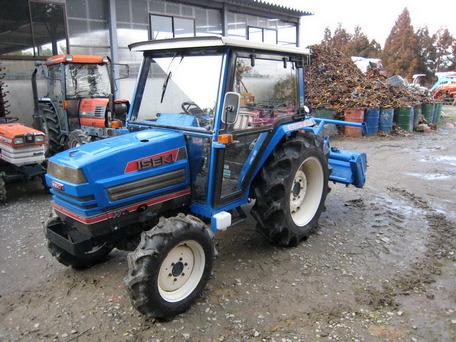

Iseki TA317

Production: 1989 - 1992

Production
Manufacturer:	Iseki
Type:	Compact Utility tractor

Variants
TA317F:	4WD

Iseki TA317 Power
Engine:	30.1 hp 22.4 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD
Cab:	Open operator station. Cab optional.
Transmission:	16-speed

Power Take-off (PTO)
Rear RPM:	540 (1.375)
Engine RPM:	565@2800 732@2800 1053@2800 1233@2800

Electrical
Ground:	negative
Battery volts:	12

Engine Detail
Iseki E3ADI
diesel
3-cylinder
liquid-cooled
Displacement:	91.4 ci 1.5 L
Bore/Stroke:	3.43x3.31 inches 87 x 84 mm
Power:	30.1 hp 22.4 kW
Rated RPM:	2800
Starter:	electric
Starter volts:	12
Oil capacity:	5.1 qts 4.8 L

Transmission
Gears:	16 forward and reverse
Four gears (1-4) in four ranges with shuttle shift.

Dimensions
Wheelbase:	67.9 inches 172 cm
Length:	120.9 inches 307 cm
Width:	56.1 inches 142 cm
Height (steering wheel):	57.5 inches 146 cm
Height (cab):	78.5 inches 199 cm
Ground clearance:	13.8 inches 35 cm
2WD Front tread:	38.6 to 56.7 inches 98 to 144 cm
4WD Front tread:	44.5 inches 113 cm
Rear tread:	43.3 to 55.9 inches 109 to 141 cm
