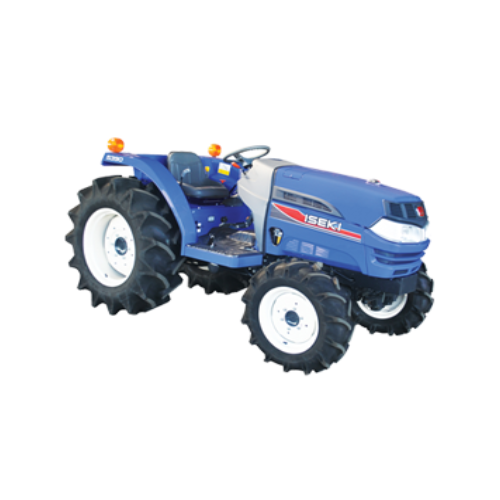

Iseki AT5330

Production: 2013

Production
Manufacturer:	Iseki
Type:	Compact Utility tractor

Iseki AT5330 Power
Engine:	32.5 hp 24.2 kW

Mechanical
Steering:	power
Cab:	Open operator station.
Transmission:	9-speed gear

Hydraulics
Pump flow:	8.9 gpm 33.7 lpm

Tractor hitch
Rear Type:	I
Control:	position control
Rear lift:	2800 lbs 1270 kg

Power Take-off (PTO)
Rear RPM:	690/820

Engine Detail
Iseki E3CD
diesel
3-cylinder
liquid-cooled
Displacement:	91.4 ci 1.5 L
Power:	32.5 hp 24.2 kW
Air cleaner:	dual element dry
Rated RPM:	2600
Starter type:	electric

Transmission
Type:	gear
Gears:	9 forward and 3 reverse
Clutch:	dry disc

Dimensions
Wheelbase:	69.7 inches 177 cm
Length:	122.8 inches 311 cm
Width:	57.3 inches 145 cm
Height:	59.5 inches 151 cm
Weight:	2712 lbs 1230 kg
Ground clearance:	14 inches 35 cm
Front tread:	43.1 inches 109 cm
Rear tread:	43.3 inches 109 cm
