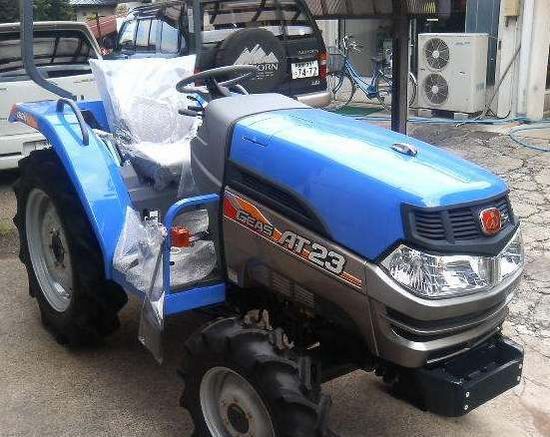

Iseki AT23

Production: 2004 - 2009

Production
Manufacturer:	Iseki
Type:	Compact Utility tractor

Iseki AT23 Power
Engine:	22.7 hp 16.9 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Steering:	power
Brakes:	wet disc
Cab:	Two-post ROPS. Cab optional.
Transmission:	16-speed

Tractor hitch
Rear Type:	I

Power Take-off (PTO)
Rear RPM:	540 (1.375)
Engine RPM:	569@2500 765@2500 942@2500 1227@2500 -765@2500

Electrical
Ground:	negative
Battery volts:	12

Engine Detail
Iseki E3CD
diesel
3-cylinder
liquid-cooled
Displacement:	91.4 ci 1.5 L
Bore/Stroke:	3.425x3.31 inches 87 x 84 mm
Power:	22.7 hp 16.9 kW
Rated RPM:	2500
Starter:	electric
Starter volts:	12

Transmission
Gears:	16 forward and reverse
Clutch:	dry disc

Dimensions
Wheelbase:	64.4 inches 163 cm
Length:	118.5 inches 300 cm
Width:	49.8 inches 126 cm
Height (ROPS):	77.8 inches 197 cm
Height (cab):	77.8 inches 197 cm
ROPS Weight:	2844 lbs 1290 kg
Cab Weight:	3097 lbs 1404 kg
Ground clearance:	12.8 inches 32 cm
Front tread:	37.8 inches 96 cm
Rear tread:	39.8 to 46.1 inches 101 to 117 cm
