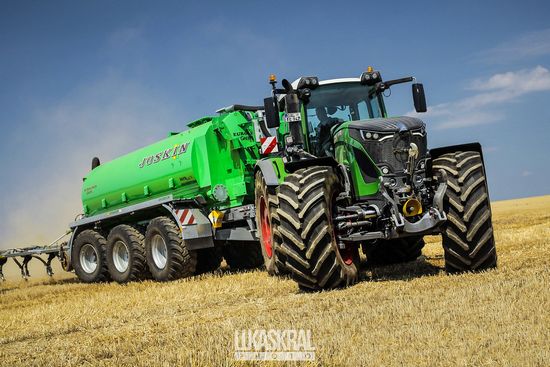

Fendt 942 Vario

Production: 2020

Production
Manufacturer:	Fendt (a part of AGCO)
Type:	Row-Crop tractor
Factory:	Marktoberdorf, Germany

Fendt 942 Vario Power
Engine (gross):	415 hp 309.5 kW
PTO (claimed):	341 hp 254.3 kW
Drawbar (tested):	318.8 hp 237.7 kW
PTO (tested):	371.3 hp 276.9 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Steering:	power
Brakes:	hydraulic wet disc
Cab:	Cab standard with air-conditioning.
Transmission:	continuously-variable transmission

Capacity
Fuel:	165.1 gal 624.9 L
Exhaust fluid (DEF):	18.5 gal 70.0 L
Hydraulic system:	23.8 gal 90.1 L

Hydraulics
Type:	closed center
Capacity:	23.8 gal 90.1 L
Pressure:	2900 psi 200.0 bar
Rear valves:	6*Optional
Front valves:	2*Optional
Pump flow:	43.6 gpm 165.0 lpm
58.1 gpm 219.9 lpm *Optional
113.6 gpm 430.0 lpm *Optional. Combination of 220 LPM and 210 LPM pumps.

Tractor hitch
Rear Type:	III/IVN
Rear lift:	27898 lbs 12654 kg
Front Hitch:	II*Optional
Front lift:	12553 lbs 5694 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540E/1000
1000/1000E
Front PTO:	independent*Optional
Front RPM:	1000

Electrical
Ground:	negative
Charging system:	alternator
Charging amps:	275
Batteries:	2
Battery volts:	12

Engine Detail
MAN D1556 LE 521
turbocharged intercooled diesel
6-cylinder
liquid-cooled
Displacement:	551.5 ci 9.0 L
Bore/Stroke:	4.53x5.71 inches 115 x 145 mm
Emissions:	Tier IV
Rated Power (ECE R120):	415 hp 309.5 kW
Rated RPM:	1700
Torque:	1453 lb-ft 1970.3 Nm
Torque RPM:	1550
Starter:	electric
Starter volts:	24

Transmission
Transmission:	Vario TA300
Type:	continuously-variable transmission
Gears:	infinite forward and reverse

Dimensions
Wheelbase:	124 inches 314 cm
Length:	219.5 inches 557 cm
Width:	108.3 inches 275 cm
Height (cab):	133.3 inches 338 cm
Ground clearance:	23.7 inches 60 cm
Rear axle:	Flange
Rear axle:	Bar: 98.4 inch length 2499 mm
Rear axle:	Bar: 118 inch length 2997 mm
